Flycolor Raptor5 32Bit 3-6S 25A or 35A Individual ESC - Choose Version

High performance, small size, light weight - that is what the Flycolor Raptor 5 series have to offer. Flycolor Raptor 5 ECS's by Flycolor is perfect for fixed-wing RC Drones!  Choose your Amp, from a range of 20A, and 35A.

Check out our Individual ESC selection and all our Flycolor Products!

Features

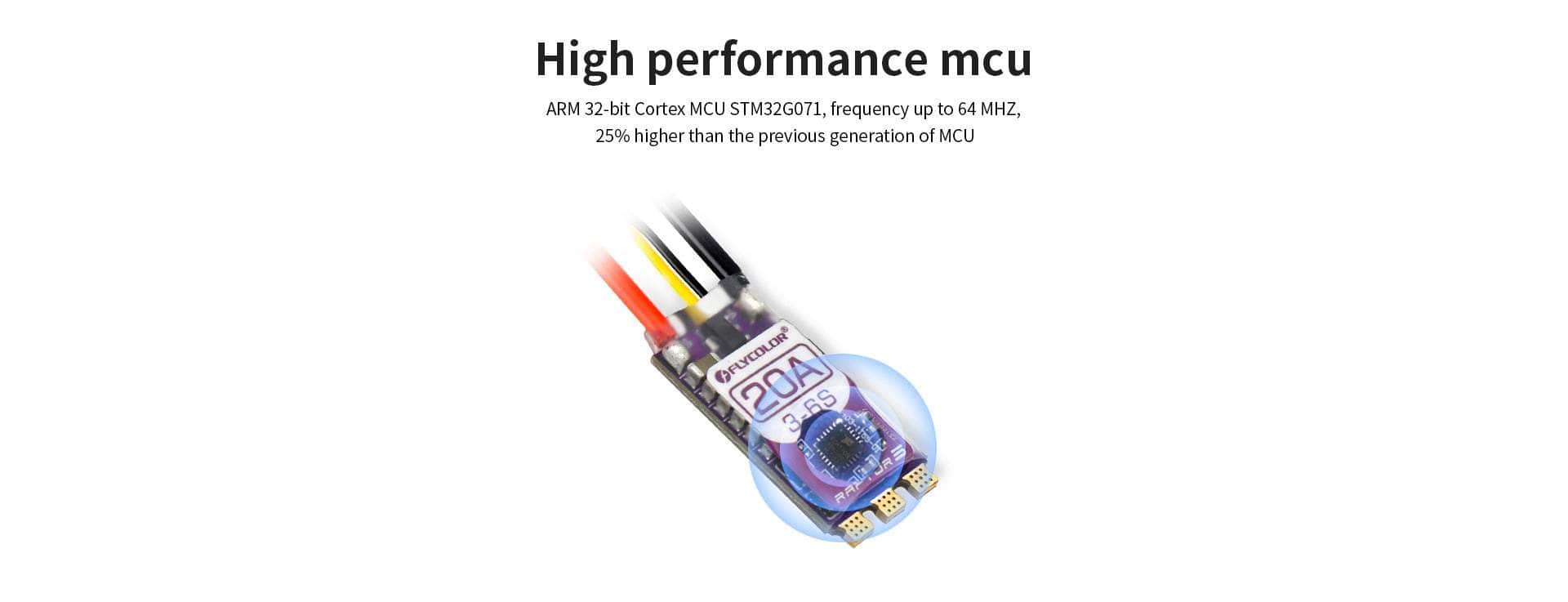

• ARM 32-bit Cortex MCU STM32G071, frequency up to 64 MHZ, 25% higher than the previous generation of MCU.
• Compared with the previous generation of ESC, it has better routing and component layout.

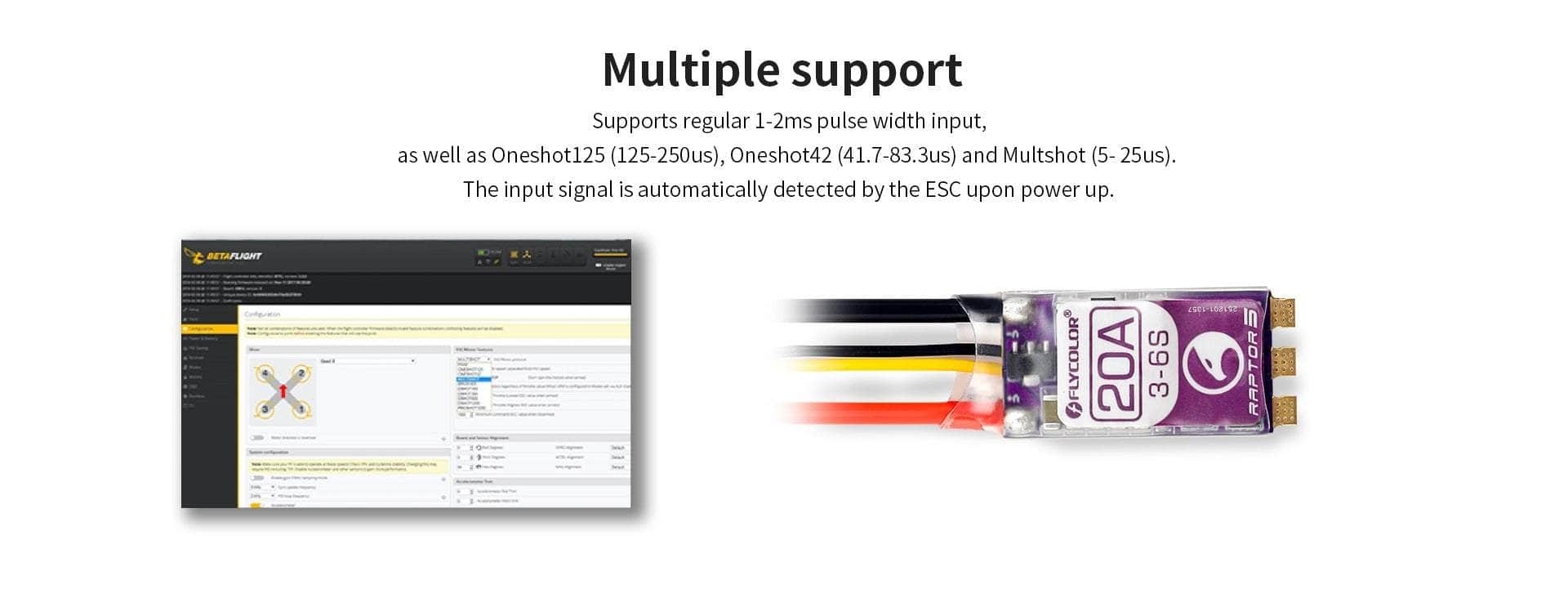

• Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up.
• Features high-temperature silicone signal cable for wire flexibility and ease of installation.

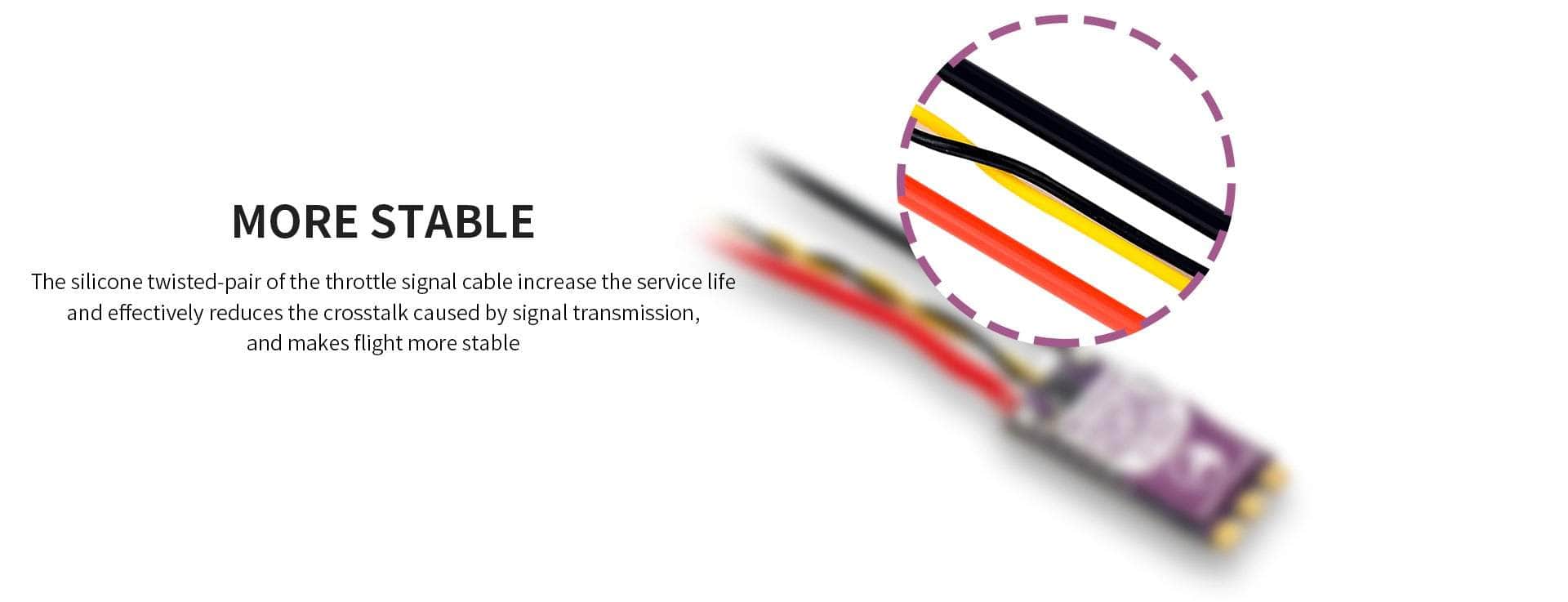

• The silicone twisted-pair of throttle signal cable, increases the service life and effectively reduces the crosstalk caused by signal transmission, and makes flight more stable.


Specifications

20A

• Model: Raptor5 G071-20A
• Battery: 3-6S
• Con. Current: 20A
• Burst Current(10S): 25A
• BEC: No
• Weight: 6.5g

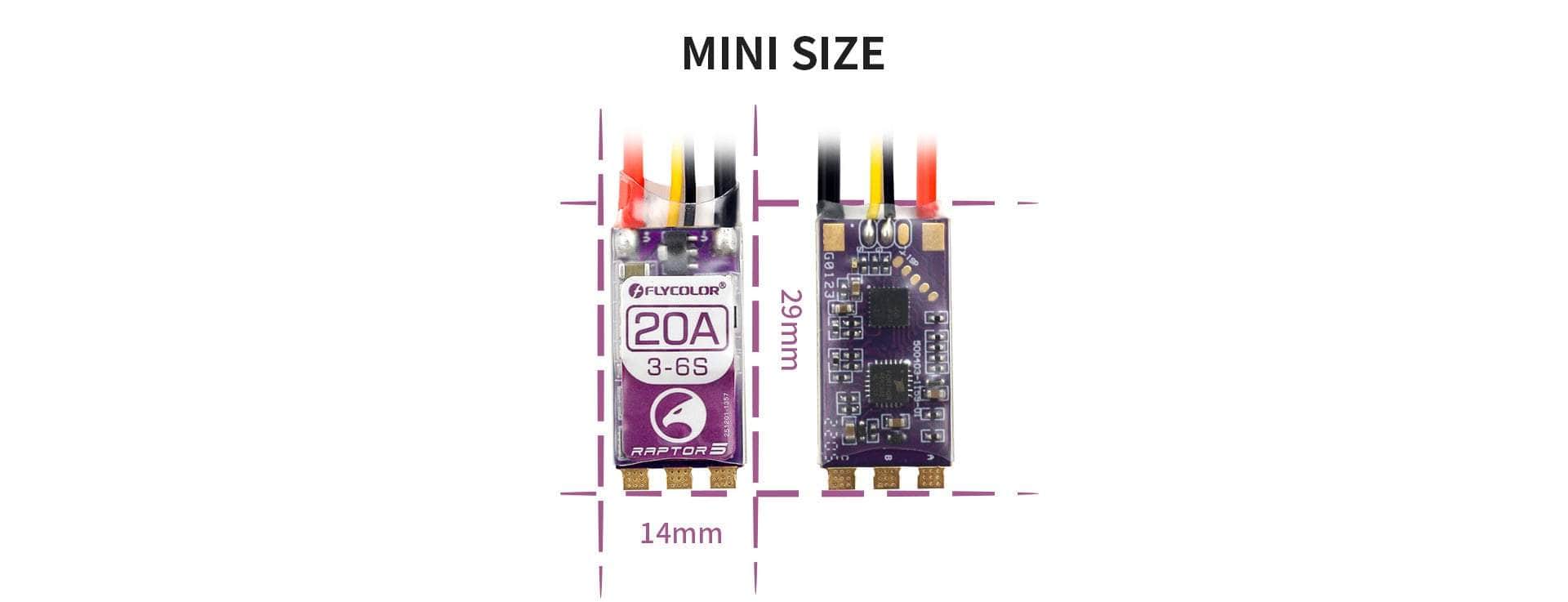

• Size: 29x14x6mm
• Firmware: Flycolor_Raptor_5
• Typical Applications: FPV

35A

• Model: Raptor5 G071-35A

• Battery: 3-6S
• Con. Current
• Burst Current(10S)
• BEC: No
• Weight: 6.5g
• Size: 29x14x6mm
• Firmware: Flycolor_Raptor_5
• Typical Applications: FPV

50A

• Model: Raptor5 G071-50A
• Battery: 3-6S
• Con. Current 50A
• Burst Current(10S): 60A
• BEC: No
• Weight: 10.2g
• Size: 33x16x6mm
• Firmware: Flycolor_Raptor_5
• Typical Applications: FPV

Includes

• 1x Flycolor Raptor 5 3-6s Individual ESC - Choose your Amp

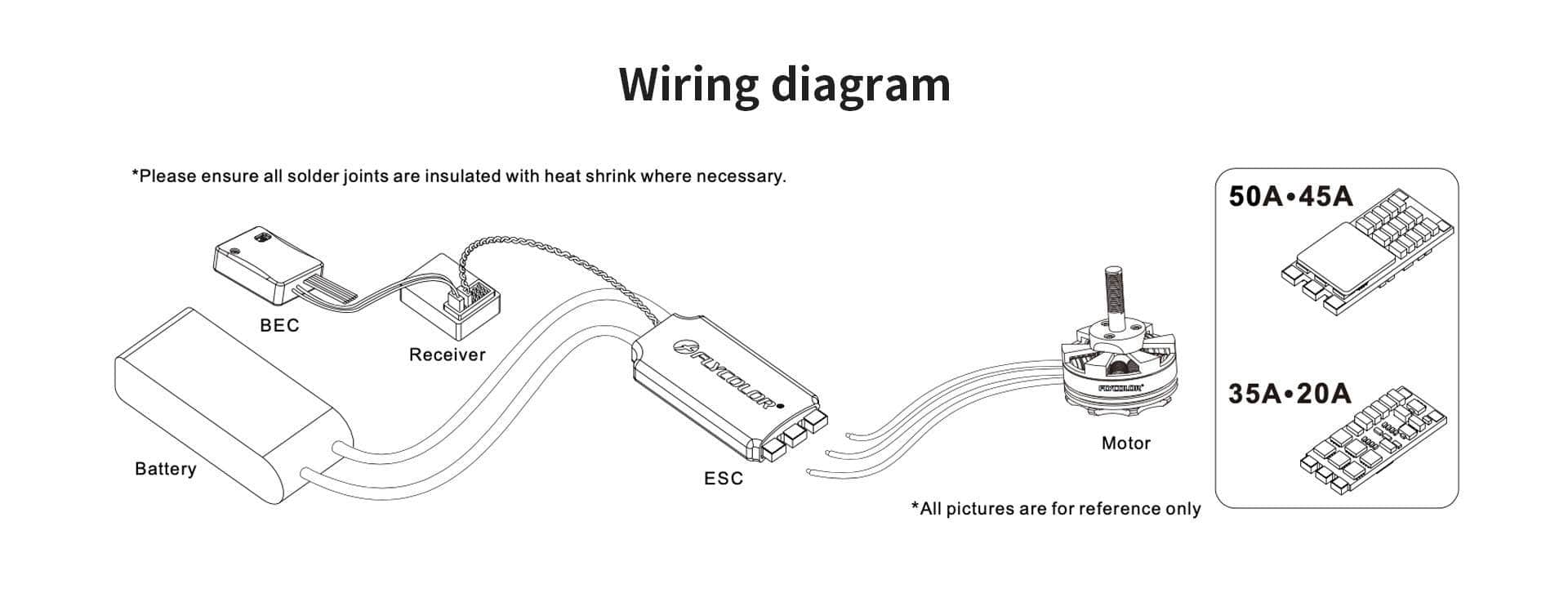

Wiring Diagram
