Note: Choose your arms type and if you want prints with your frame kit.
'The podium owning: Switchback, Optimized and Refined. Stiffer, smaller, 20x20 only.'

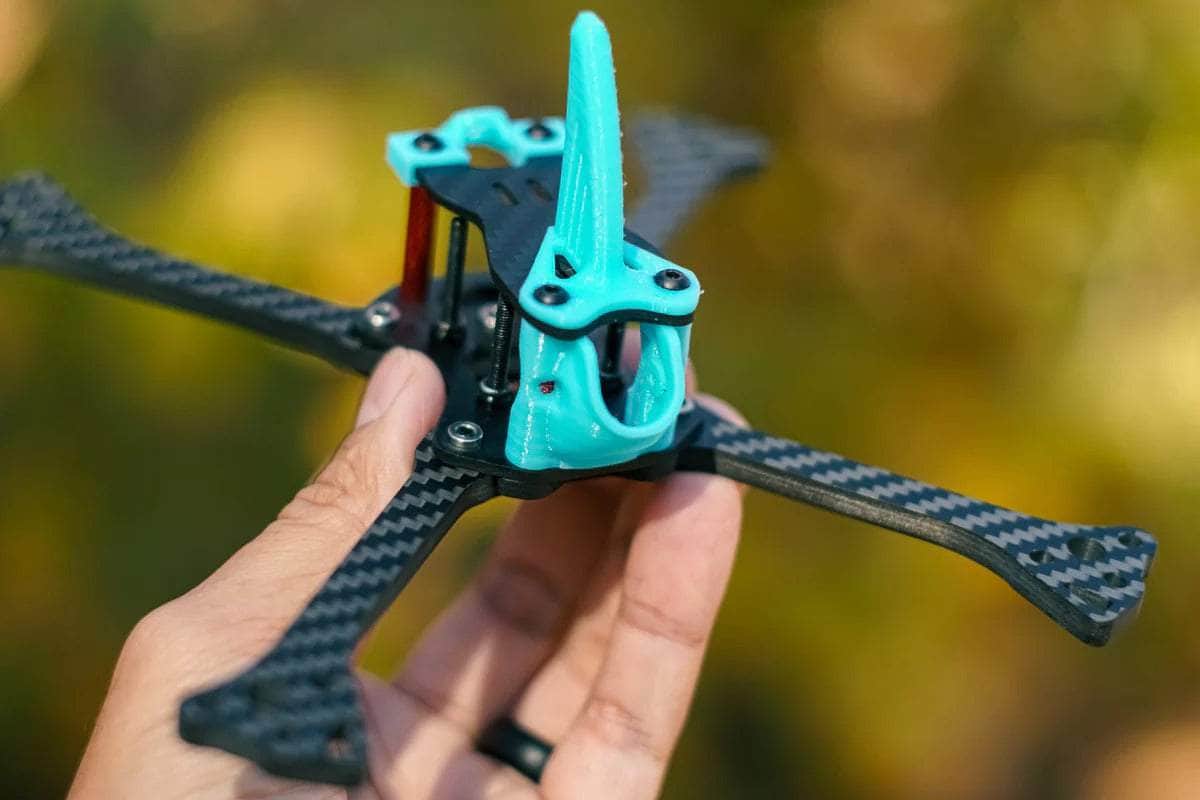

The FIVE33 Switchback PRO 5' Racing Frame Kit is engineered to provide pilots with optimal performance, durability and stability. The lightweight, durable carbon fiber frame features low tolerance arms for an extra tight build. The FIVE33 Switchback PRO This frame is sure way to provide pilots an edge in any race.
Check out all our Five33 5' Frames and all our FIVE33 Flying Gear!
Feature
- Arms for this frame are interchangeable
- Lite arms = 33g SFG arms = 35g

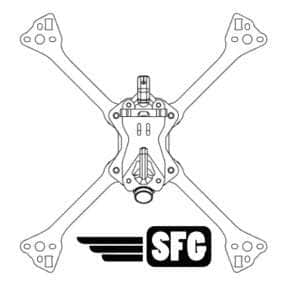

- SFG: The SFG arms are compatible with all Switchback V1 braces, SFGs, & BFGs

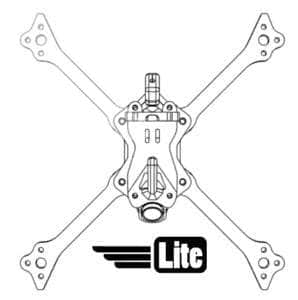

- Lite(SPLT): Smallest possible arm length that can fit 5.1″ props
Specifications
- Weight 73.8g (Prints Included)
- Dimensions: 6 x 12.70 x 0.25 cm
- Arm Option SPLT Arms or SFG Arms
- TPU Color Championship Teal (Optional)
- Motor Bolt Mounting: 16x16 & 19x19
- Stack Mounting: 20x20
- Bottom Plate: 2mm
- Arm Thickness: 5mm
- Anti-Wiggle-Plate: 3mm
- Mid Plate w/ Press Nuts Installed: 2mm
- Top Plate: 2mm
3d printed parts available HERE
Includes
- 1x FIVE33 Switchback PRO 5' Racing Frame Kit - Choose Your Version
