FETtec Spike Absorber - 6S Max

Capacitor NOT included, check out our Capacitor collection here.

The FETtec Spike Absorber uses well TVS-Diodes to prevent the connected components from huge voltage spikes. The Spike Absorber is meant to be used in tandem with a capacitor. The capacitor can be mounted directly on top of it.

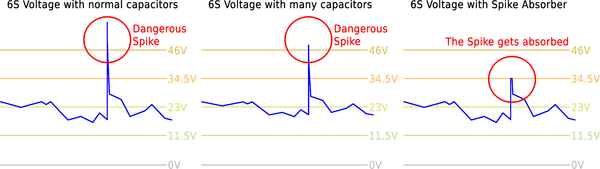

The Spike Absorber absorbs voltage spikes so that damaging voltages are not reached at all

Check out all our KISS compatible gear, and everything FETtec!

Features

• TVS diodes absorb dangerous voltage spikes to protect connected components
• Use with an electrolytic capacitor, which can be mounted directly on it

Specifications

• Maximum Operating Voltage: 25.2V (6S LiPo)
• Dimensions: 23x10mm
• Weight: 1.62g

Includes

• 1x FETtec Spike Absorber - 6S Max

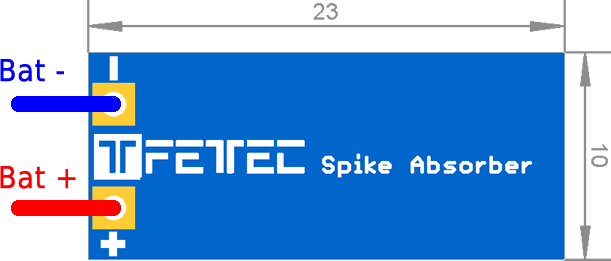

Wiring Diagram
