Emax Nano (50mm) 5.8GHz SMA Antenna - White - LHCP

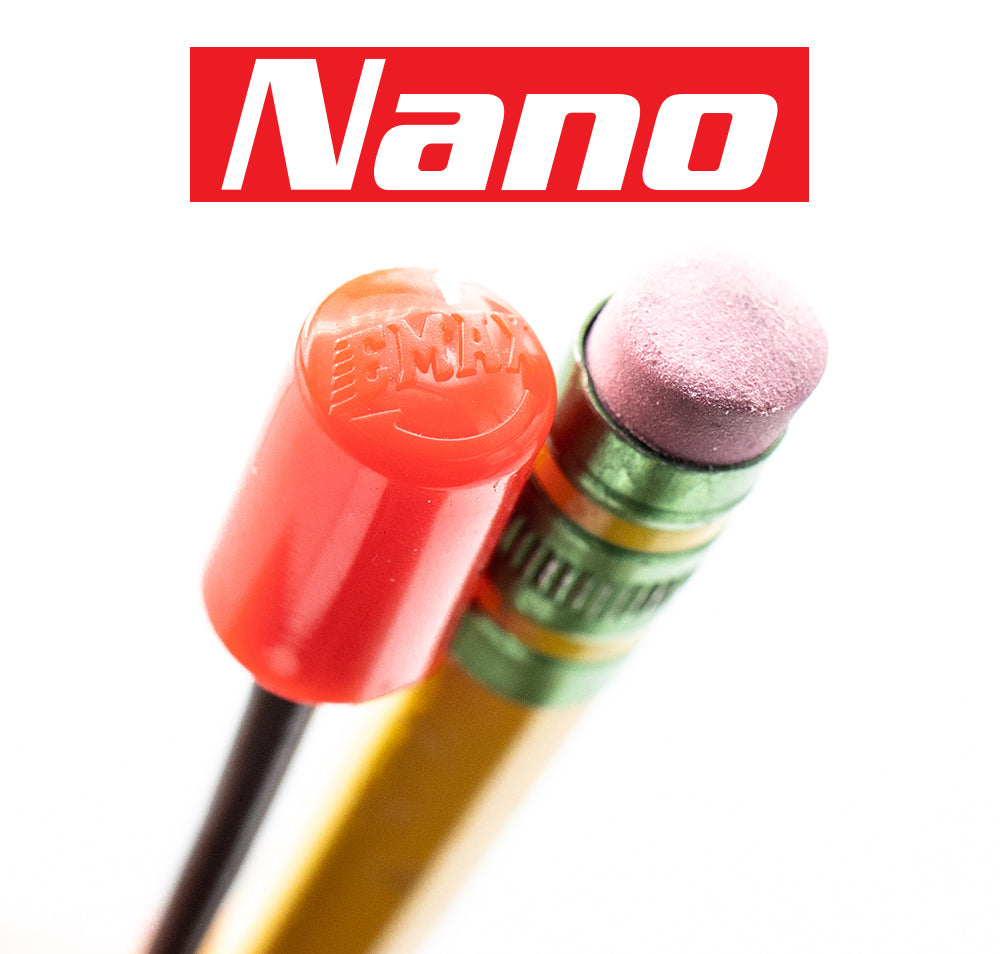

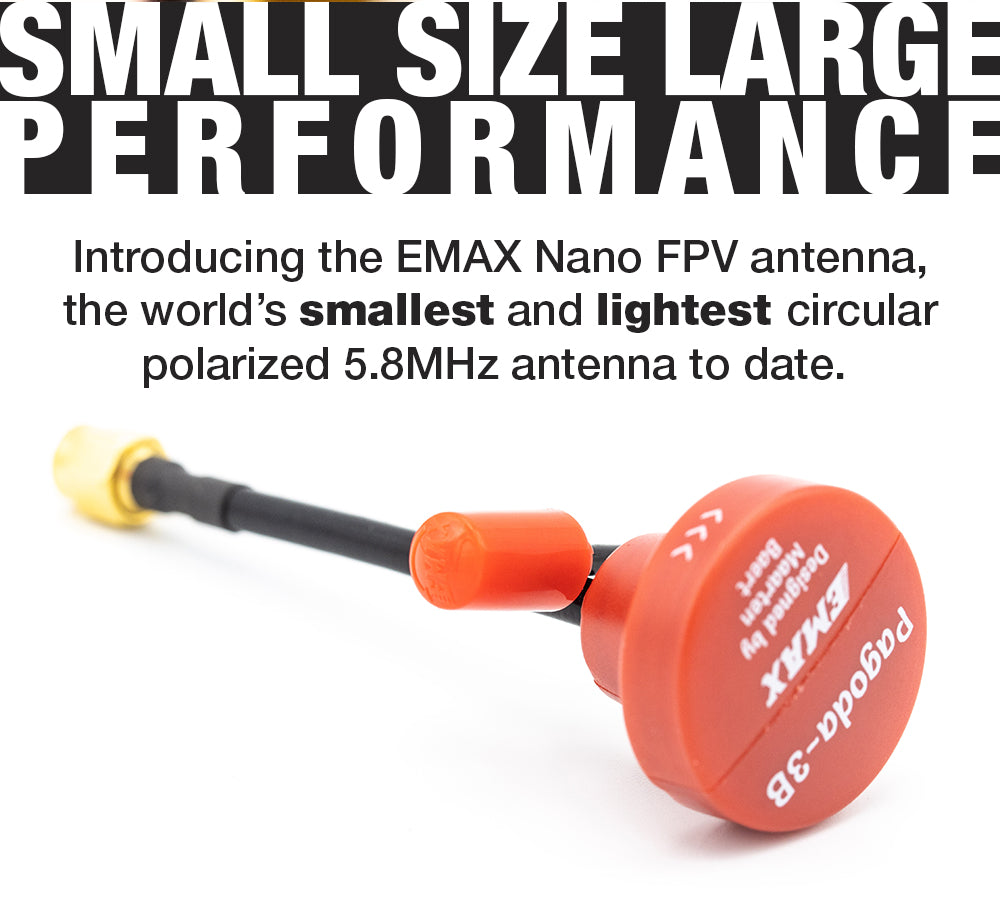

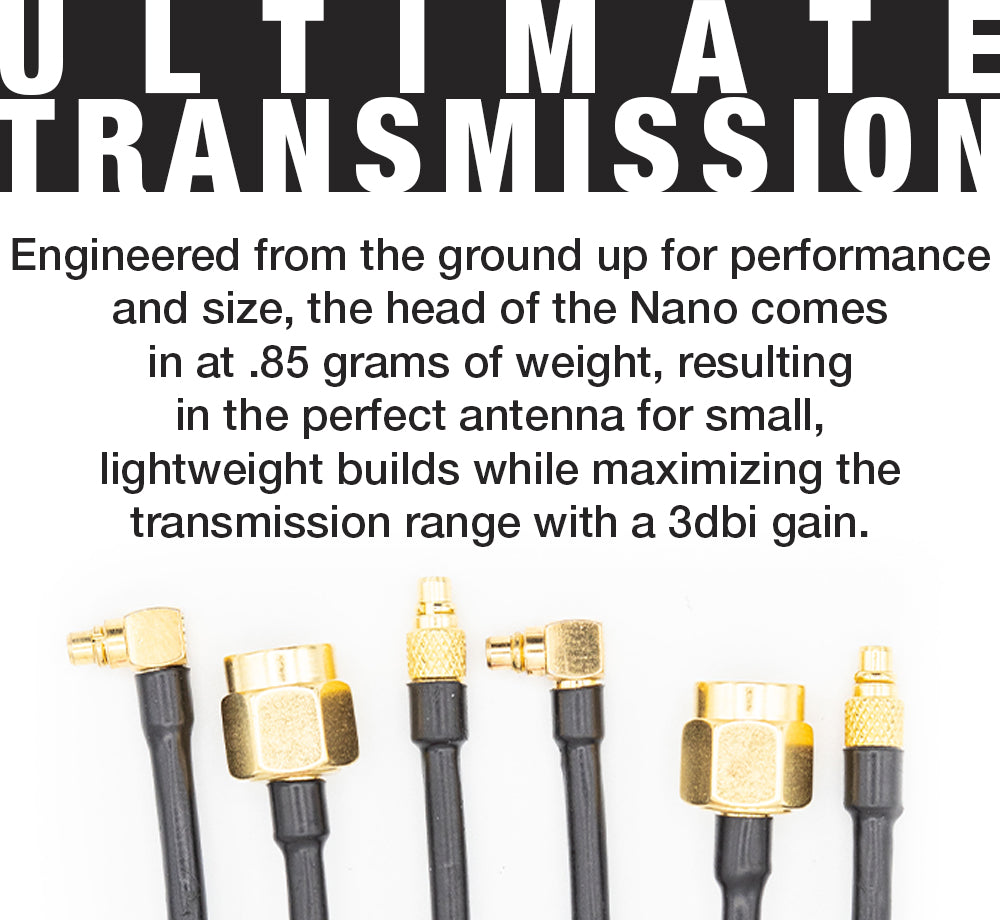

 Small size & large performance! Introducing the EMAX Nano FPV antenna!  The world's smallest and lightest circular polarized 5.8MHz antenna to date. Engineered from the ground up for performance and size, the head of the Nano comes in at 0.85 grams, resulting in the perfect antenna for small, lightweight builds while maximizing the transmission range with a 3dbi gain.

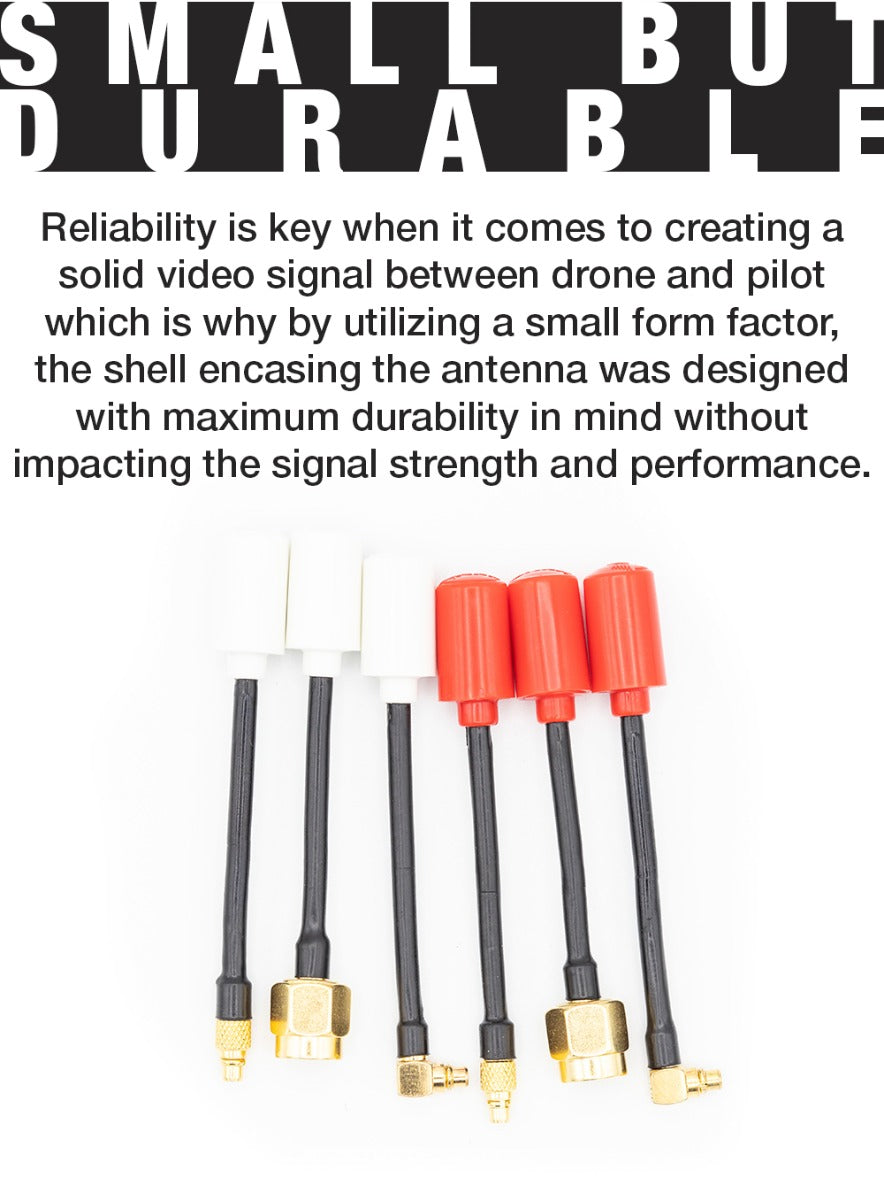

Reliability is key when it comes to creating a solid video signal between the drone and pilot. Which is why by utilizing a small form factor, the shell encasing the antenna was designed with maximum durability in mind without impacting the signal strength and performance.

 Check out all our Antennas and the rest of our EMAX selection!

Specifications

• Gain: 3.0dbic
• VSWR: <1.5:1
• Bandwidth: 5650 - 5950 MHz
• Polarization: Left Hand Circular Polarized (LHCP)
• Weight: 3.5g

Includes

• 1X Emax Nano (50mm) 5.8GHz SMA Antenna - White - LHCP
