DYS F722 6S 30x30 F7 Flight Controller

 The DYS F7 Flight Controller features an STM32F722 MCU, an ICM42688P gyroscope, a BMP280 barometer, and an AT7456E OSD. It includes a 16MB black box, 6 UART ports, and eight motor ESC signals. The BEC output offers 3.3V/1A, 5V/3A, and 12V/3A, while the unit itself measures 38mm x 38mm and weighs 10g. It is compatible with a 6S Lipo input and features a mounting hole size of 30.5mm x 30.5mm/M3. Additionally, it has a VTX switch and an Air Unit port for added convenience.

Check out our other flight controllers and the rest of our DYS Products!

Features

• Input Compatibility

• Motor ESC Signals

• 6 UART Ports

• BEC Output

• Lightweight

• Versatility

• Black Box

Specifications

• Mounting Hole: 30.5mm x 30.5mm/M3

• BEC Output: 3.3V/1A; 5V/3A; 12V/3A

• Gyroscope: ICM42688P

• Barometer: BMP280

• ESC Signal: 8 Motors

• Size: 38mm x 38mm

• MCU: STM32F722

• Air Unit Port: Yes

• Black Box: 16MB

• VTX Switch: Yes

• OSD: AT7456E

• UART: 6 Ports

• Input: 6S Lipo

• Weight: 10g

Includes

• 1x DYS F722 6S 30x30 F7 Flight Controller

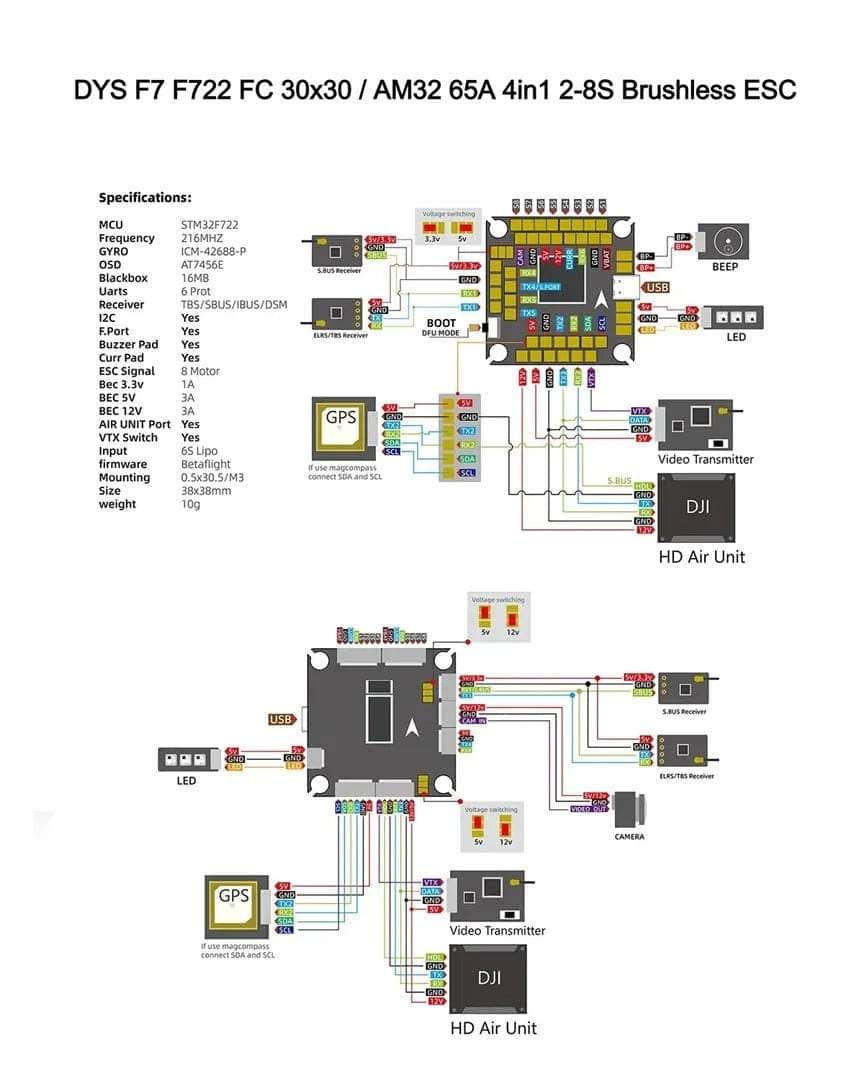

Wiring Diagram
