DYS AM32 65A 2-8S 30x30 4in1 ESC

The DYS 65A 4-in-1 ESC runs the AM32 firmware and can handle an input voltage range of 2-8S Lipo. It can provide a continuous current of 65A and a burst current of 80A, with a weight of only 15.3g, a current rate of 200, and a mounting hole size of 30.5mm x 30.5mm/M3; this ESC is a reliable and efficient choice for your setup.

Check out all our 30x30 ESCs  and the rest of our DYS Products!

Features

• Upgradable Firmware

• Input Compatibility

• Lightweight

• Versatility

• Reliability

• Efficiency

Specifications

• Mounting Hole: 30.5mm x 30.5mm/M3

• Firmware: AM32 with F4 MCU

• Continuous Current: 65A

• Input Voltage: 2-8S Lipo

• Burst Current: 80A

• Current Rate: 200

• Weight: 15.3g

AM32 Firmware Explained

Open Source Firmware

Includes

• 1x DYS AM32 65A 2-8S 30x30 4in1 ESC

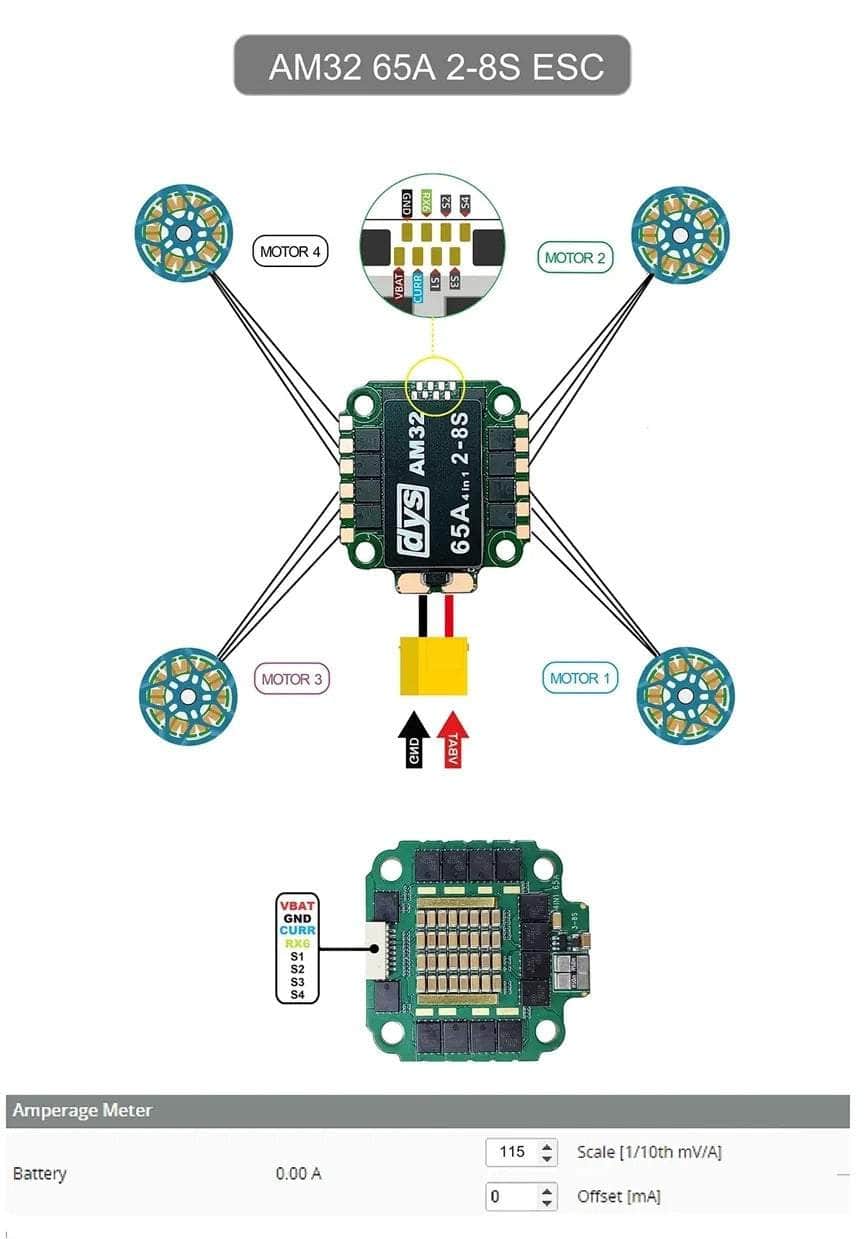

Wiring Diagram
