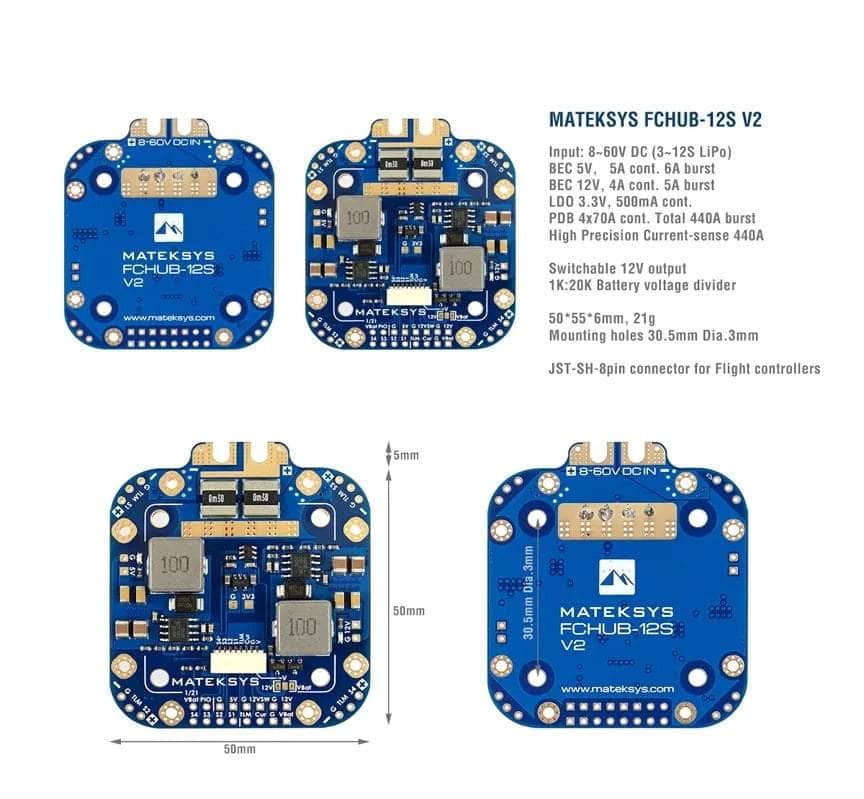

MATEKSYS FCHUB 12S V2 PDB

Matek PDB is a quality power distribution board for your X-Class or Cinelifter rig. The new MATEKSYS FCHUB 12S V2 PDB was specifically designed for high power demand setups with 5V 5A and 12V 4A regulators. This PDB is also set up with high precision current sensor up to 440A.

Check out the rest of our BECs and PDBs as well as the entire Matek selection!

Features

• Integrated Current Sensor
• 70A continuous output
• Wide Voltage Support
• High Power Handling
• Durability Features
• Dual BEC Outputs
• 110A burst output
• ESC Connectivity
• Compact Design
• LED Indicators
• 12V Output
• 5V Output

Specifications

PDB

• Input voltage range: 8~60V (3~12S LiPo)

• 4x70A continuous, 4x110A burst

• 4x ESC power /signal/ telemetry pads

• Current Senor: 440A,  3.3V ADC,  Scale 75

• 2x LED indicators for 5V, 12V

• 1K:20K voltage divider built-in

JST-SH 8PIN CONNECTOR

• “V” pad: 12V or VBat voltage selectable

• G: GND

• Curr: current sensor signal

• TLM: for BlHeli32 ESC telemetry

• S1~S4: ESC signal

BEC 5V OUTPUT (5V PAD)

• Voltage: 5.1 +/- 0.1VDC

• Continuous current 5 Amps,  Max.6A

• Short-circuit tolerant (2 seconds)

• Overcurrent protection & self-recovery

BEC 12V OUTPUT (12V PAD)

• Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)

• Continuous current 4 Amps,  Max.5A

• Input voltage<12V,  Output voltage = Input voltage

• Short-circuit tolerant (2 seconds)

• Overcurrent protection & self-recovery


SWITCHABLE 12V OUTPUT (SW12V PAD)

• 12V ON/OFF switchable via PINIO(high/low level)

• support constant 2A

• can be use for powering VTX, LED etc.


BEC 3.3V OUTPUT

• Linear Regulator

• Continuous current: 500mA


PHYSICAL

• Mounting: 30.5 x 30.5mm, Φ3mm

• Dimensions: 55 x 50 x 6 mm

• Weight: 21g

Includes

• 1x MATEKSYS FCHUB 12S V2 PDB
• 1x SH1.0_8pin cable 5cm

• 2x SH1.0_8pin connectors
• 1x Capacitor
