DJI Goggles 3

Experience true HD FPV footage with the DJI Goggles 3. Now featuring pass-through cameras and hinge to help fit all faces.

***Note: Now with DJI Goggles 3 Firmware:v01.00.0300 update, the Goggles 3 are backward compatible with DJI O3 Air units! You must update the Goggles 3 and the O3 Air Unit to the latest firmware.

Notes

• Download DJI Assistant 2 (Consumer Drones Series)

• Restart the aircraft / O3 Air Unit, remote control device, and goggles after the firmware updates are complete.

• Note that the firmware update may reset various flight parameters such as RTH
• Altitude and Maximum Flight Distance. Before updating, take note of your preferred settings and readjust them after the firmware update is complete.

• If the update fails, restart the aircraft, remote control device, goggles, and the DJI Fly app or DJI Assistant 2 (Consumer Drone Series), and try again.

A visionary breakthrough! DJI Goggles 3 now has Real View PiP (Picture-In-Picture). Observe your surroundings without removing the goggles, for more safety and immersion. The Micro-OLED high-definition display and ultra-low-latency transmission bring the world in to view.

Check out the rest of our goggles and all of our DJI products!

Features

Specifications

Video Transmission

• Video Transmission System: O4
• Live View Quality: 1080p@30/50/60/100fps
• Operating Frequency:

-2.400-2.4835 GHz
-5.170-5.250 GHz*
-5.725-5.850 GHz*
* 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.

• Transmitter Power (EIRP):

-2.4 GHz
＜33 dBm (FCC)
＜20 dBm (CE/SRRC/MIC)
-5.1 GHz
< 23 dBm (CE)
-5.8 GHz
＜33 dBm (FCC)
＜30 dBm (SRRC)
< 14 dBm (CE)

• Communication Bandwidth Max 60 MHz
• Max Transmission Distance (unobstructed, free of interference)

-FCC: 13 km (subject to the aircraft's max flight distance)
-CE: 10 km
-SRRC: 10 km
-MIC: 10 km
* Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.

• Max Transmission Distance (unobstructed, with interference)

-Strong Interference: Urban landscape, approx. 1.5-4 km
-Medium Interference: Suburban landscape, approx. 4-10 km
-Low Interference: Suburb/seaside, approx. 10-13 km
* Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Max Transmission Distance (obstructed, with interference)

-Low Interference and Obstructed by Buildings: approx. 0-0.5 km
-Low Interference and Obstructed by Trees: approx. 0.5-3 km
* Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Max Download Speed: Wi-Fi: 30 MB/s

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

• Lowest Latency With DJI Goggles 3:

-1080p/100fps Video Transmission Quality: 24 ms
-1080p/60fps Video Transmission Quality: 40 ms

• Max Video Bitrate: 60Mbps
• Antennas: 4 antennas, 2T4R

Includes

• 1x DJI Goggles 3

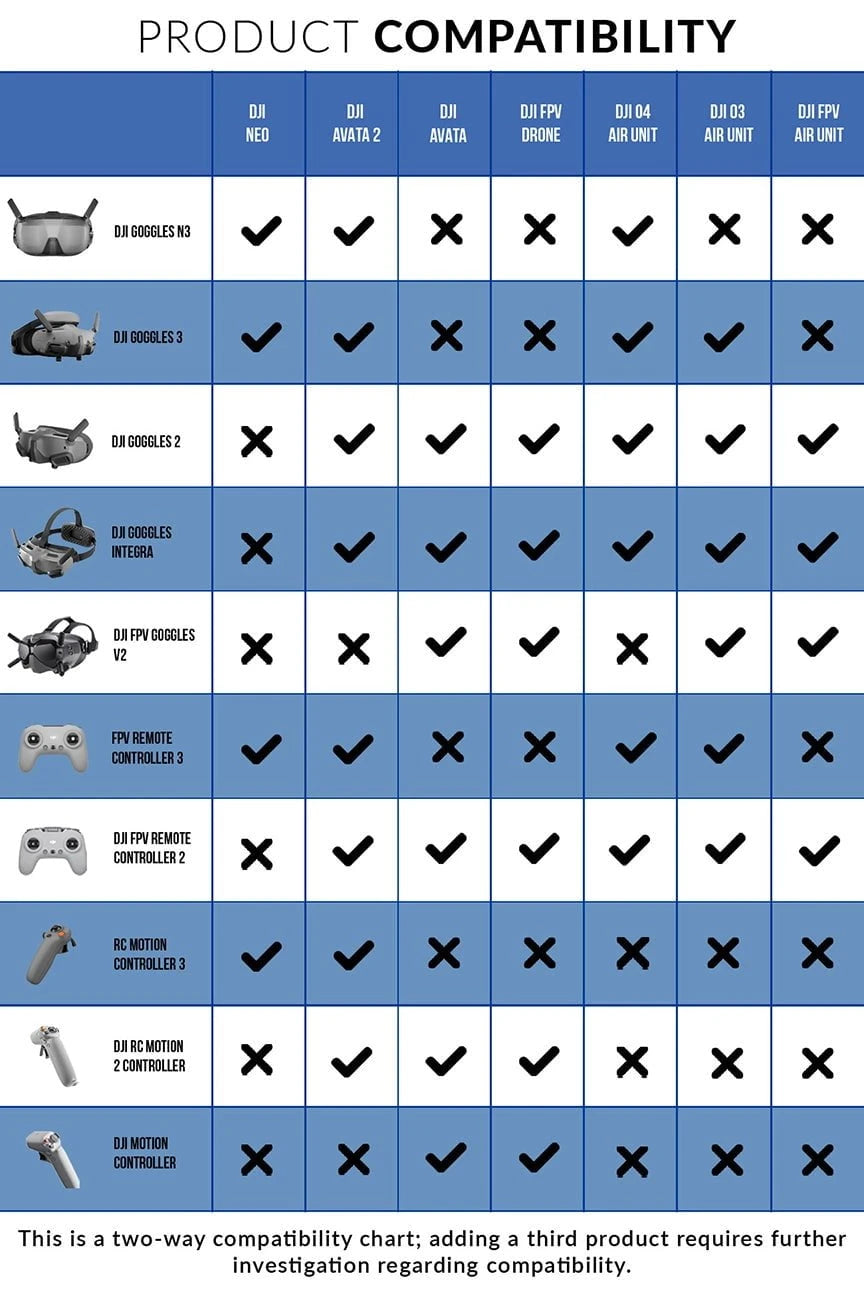

Compatibility Chart
