Diatone Mamba TOKA 2203.5 3300Kv Racing Motor

Pancake motors are more popular than ever and Diatone really sets themselves apart with their Toka motors, featuring a bright green and gold bell. Now for with Racing Kv!

Browse our motors and the rest of our Diatone products!

Features

• Low profile 3.5mm Stator Height
• Racing spec Kv
• Works for 3.5' - 5' Drones

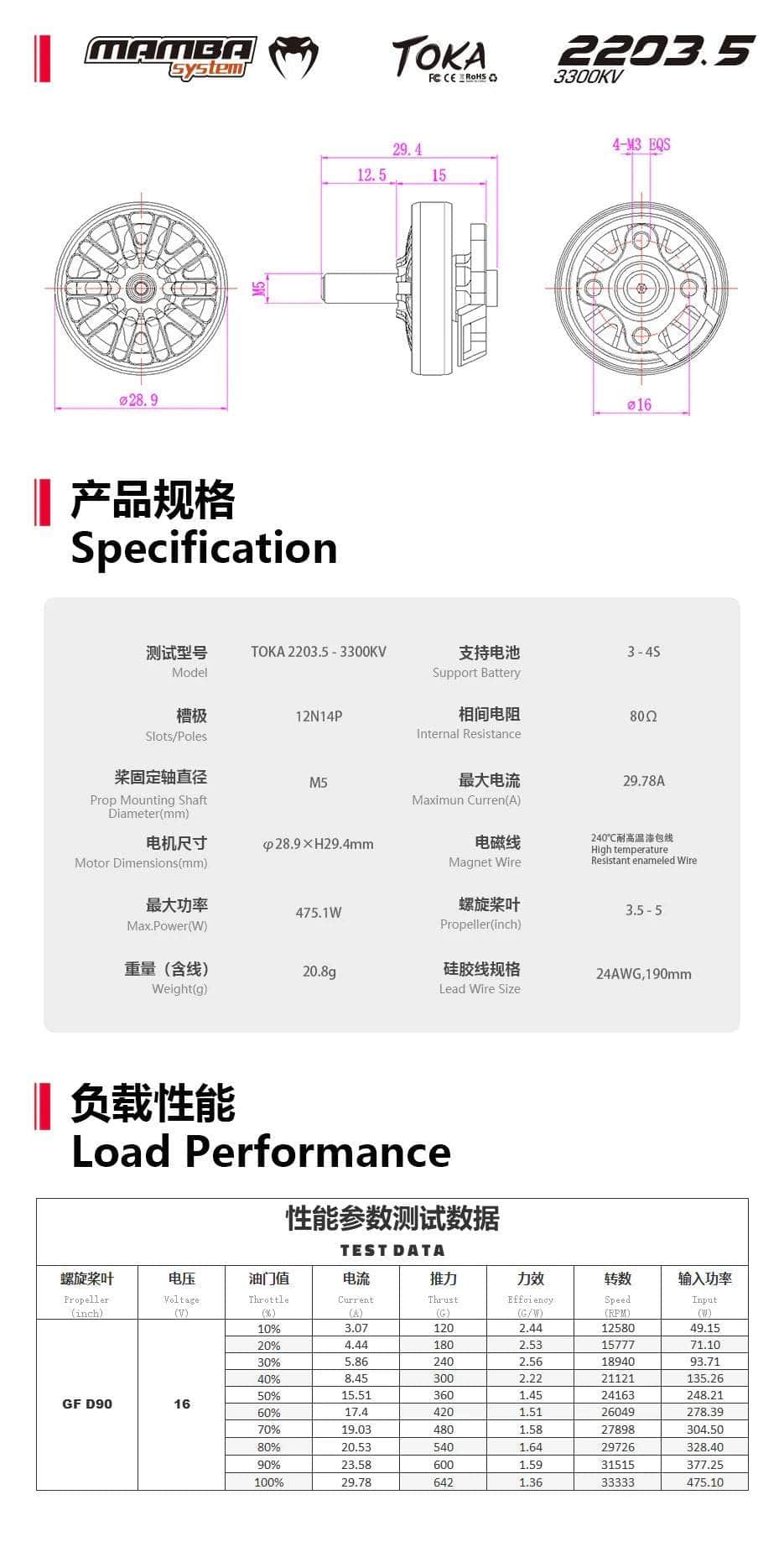

Specifications

• Overall Dimension: Φ28.9×29.4mm

• Prop mounting shaft diameter: 5mm

• Installation hole position: 16×16mm，M3

• Prop: 3.5inch

• Bearing: 9x4x4

• Shaft Diameter: 4.0mm

• Lead Wire Size：24AWG×190mm

• Slots/poles: 12N14P

• Magnet Wire: 240℃ Enameled Wire

• Stator Diamter：22mm

• Stator Height: 3.5mm

• Rated Voltage: 3~4S (12.6V~16.8V)

• Peak Current: 29.78A

• ldle Current：10V/1.5~2.2A

• Maximum Power: 475.1W

• Internal Resistance：80mΩ

Includes

1x Diatone Mamba TOKA 2203.5 3300Kv Racing Motor
