Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)

This stack pairs the Mamba MK4 F722 APP FC and the Mamba F55_128k 55A 4in1 ESC. With multiple UARTS and BECS, this stack can run all the peripherals you could ever want with ease.

Browse our Stacks & Combos and our Diatone Gear!

Specifications

Mamba MK4 F722 APP

• Voltage Input: 3-6S
• MCU: STM32F722
• Gyro: ICM42688P
• OSD: AT7456E
• Blackbox: 16M Flash Memory
• Uarts: 6Set
• ESC Signal: 8Set
• LED Controller: BF LED/MB LED
• I2C: Yes
• F.Port: Yes
• Buzz: Yes
• WiFi: Yes
• TVS Protection: Yes
• BEC: 3.3V 0.5A & 5V 3A & 9V 3A
• Mounting Pattern: 30x30 M3

Mamba F55 128k

• Input Voltage: 3~6S Lipo (12.6V~25.2V)
• Max Continuous Current: 55A
• Max Burst Current: 65A
• BEC: No
• Target：BLHeli_32 MAMBA F55_128K
• Protocol: Dshot300/600/1200
• PWM Range: 24~128K
• TVS Protection: Yes
• Mounting Pattern: 30x30 M3

Includes

• 1x Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)

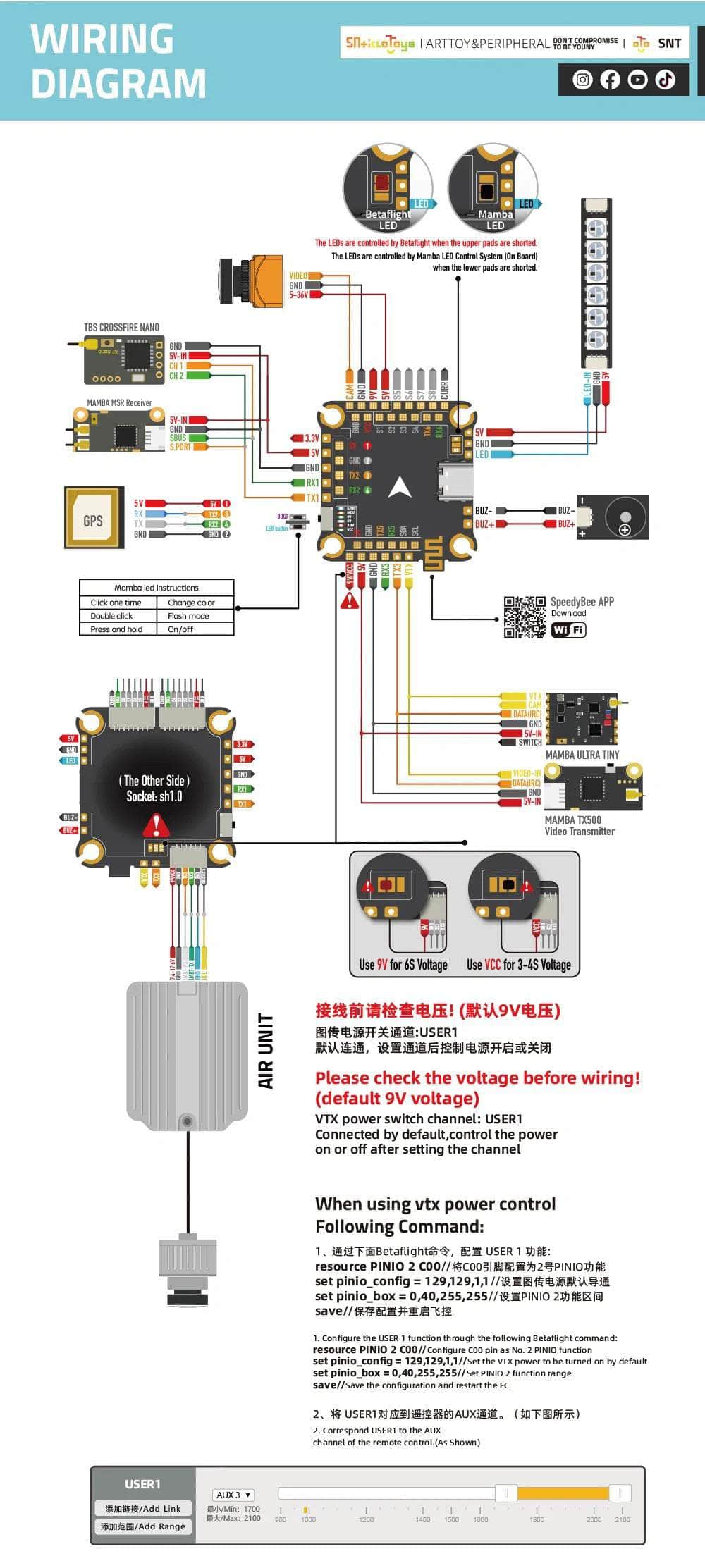

Wiring Diagram
