Diatone Mamba MK4 F405 Mini F40 8Bit 6S 20x20 Stack/Combo (F405 Mini FC / 40A 8Bit F40_BLS Mini 4in1 ESC)

Mamba was upgraded again! Six technical upgrades in 8 years. MK4 brings a new design scheme with this easier to use flight controller.

Browse our Stacks & Combos and all our Diatone Gear!

Features

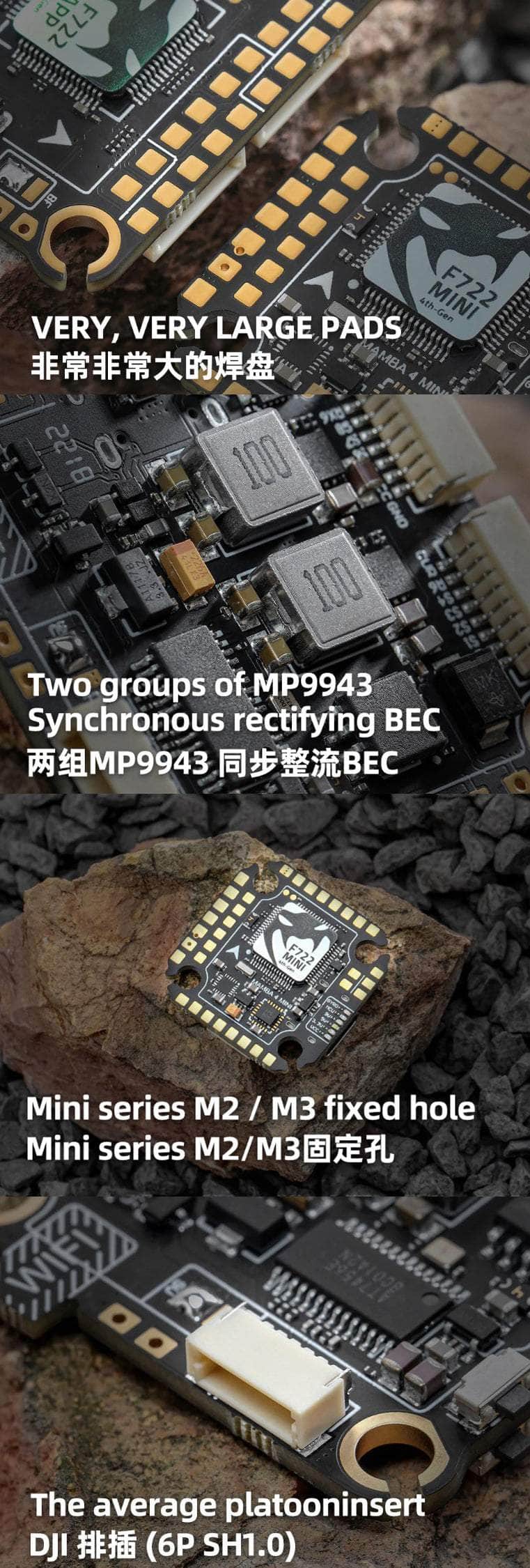

A completely different pad style has been redesigned to increase pad area by 30% and pad spacing by 100%, reducing solder errors and associated failures.

• The pad area increased by 30%
• Pad spacing increased by by 100%
• MP9943 synchronous rectifier BEC
• MINI series upgrade DJI interface and 5V 15W / 9V 18W 2set BEC
• The whole series uses Type-C
• The whole series supports 6set uart and 12C
• A Full range of integrated Flash and Baro
• 4 Set power protection
• Mini series FC use 2mm and 3mm fixing holes, special damping ring
• Upgrade the twisted pair anti-jamming cable and the reinforcement process

Specifications

MK4 F405

• MCU: STM32F405
• Frequency: 168MHz
• Gyro: ICM42688P
• OSD: AT7456E
• Blackbox: 16M Memory
• Uarts: 6 Set
• Receiver: TBS/SBUS/IBUS/DSM
• 12C: Yes
• F.Port: Yes
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 6 Set
• BEC3.3V: 0.5A
• BEC 5V: 2.5A
• BEC9V: 2A
• BF LED: Yes
• Air Unit Port: Yes
• VTX Switch: Yes
• BEC Protection: Yes
• Receiver Protection: Yes
• TVS Protection: Yes
• Input: 6S Lipo
• Software: Betaflight
• Mounting: 20.0 x 20.0mm, M3/M2
• Size: 29.0 x 29.5 x 6.5mm
• Weight: 6.0g

F40_BLS MINI ESC

• Input: 3-6S Lipo
• Current: 40A
• Burst: 45A (10S)
• CURR: Yes
• Protocol: Dshot300/600
• Mounting: 20mm, ⌀ 2


Includes

• 1x Diatone Mamba MK4 F405 Mini F40 8Bit 6S 20x20 Stack/Combo (F405 Mini FC / 40A 8Bit F40_BLS Mini 4in1 ESC)
• 1x Damping & isolation silicon pack
• 1x Wiring harness pack

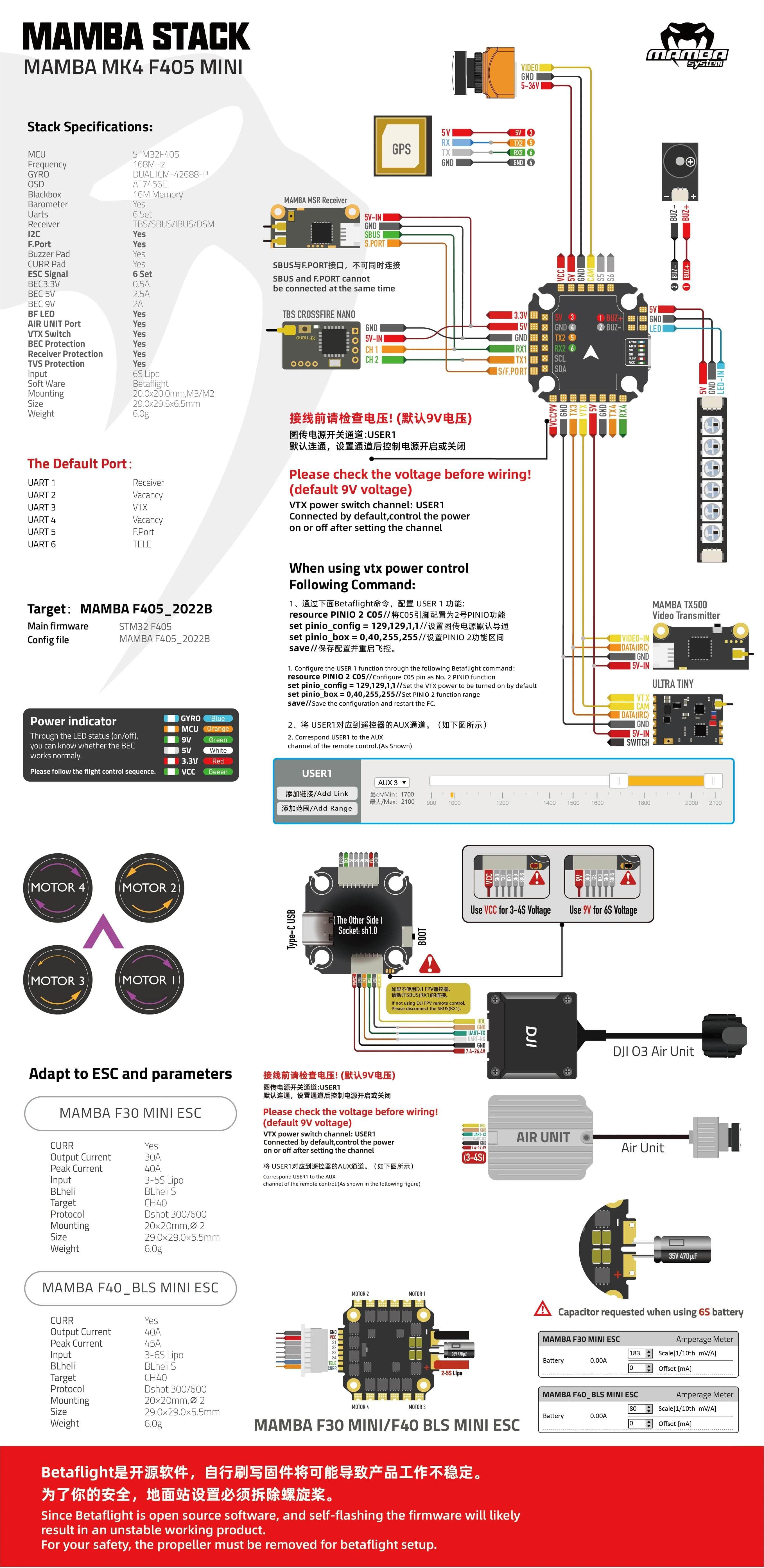

Wiring Diagram
