DarwinFPV F405 2-6S 30x30 Stack/Combo (F405 FC/50A 8Bit 4in1 ESC)

DarwinFPV Betaflight F4 Flight Controller and 2-6S BLHeli_S 4in1 Dshot600 ESC Stack with 50A continuous current and Dshot600 weighing only 10.8g!

Check out our other AIO Flight Controllers and our Darwin FPV products!

Specifications

F405

• MCU: STM32F405
• Gyro: MPU6000
• OSD Chip: Betaflight OSD AT7456E

• Blackbox: 16MB
• UARTS: 5
• I2C: SDA / SLA pads
• LED: Yes
• Beeper: Yes
• Firmware Target: MATEKF405
• FC Mounting Pattern: 30x30mm
• Dimensions: 37x36x10.8mm

4in1 ESC

• Input Voltage: 2-6S

• Max. Continuous Current: 50A
• Max. Burst Current: 60A
• MCU: EFM8BB21F16G

• BEC: 5V/2A
• Current Sensor: No
• Mounting Dimensions: 30x30mm(M3)
• Dimensions 37x36x10.8mm

Includes

• 1x Darwin FPV F405 2-6S 30x30 Stack/Combo (F405 FC/50A 8bit 4in1 ESC)

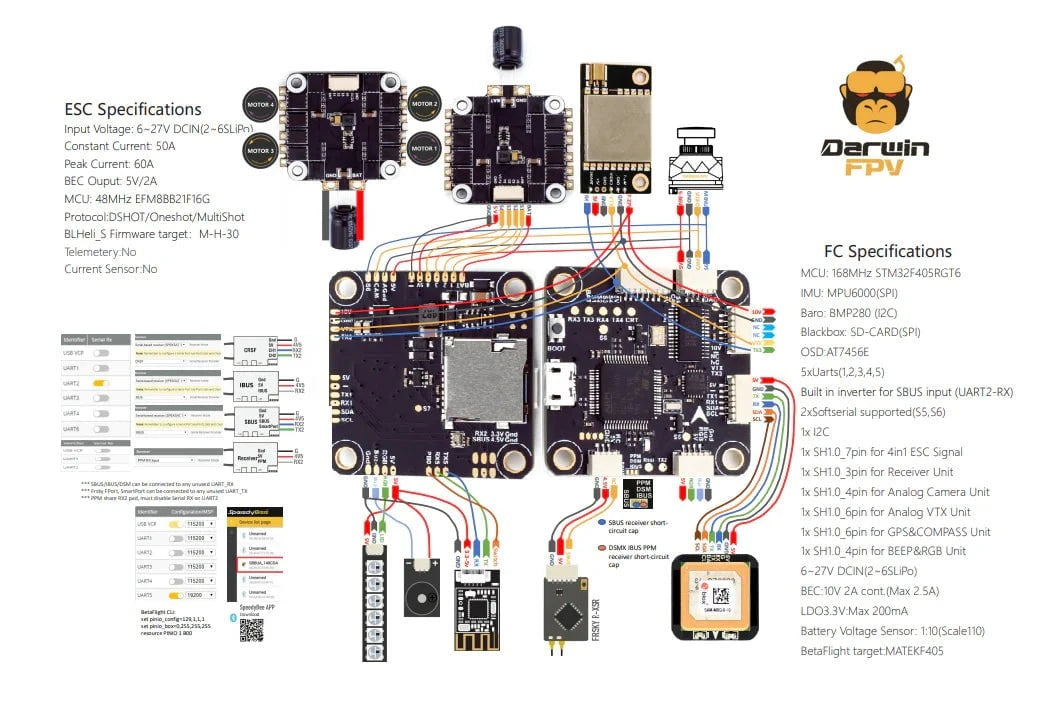

Wiring Diagram
