Caddx Polar Micro Starlight Vista Kit - Choose Color

167.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

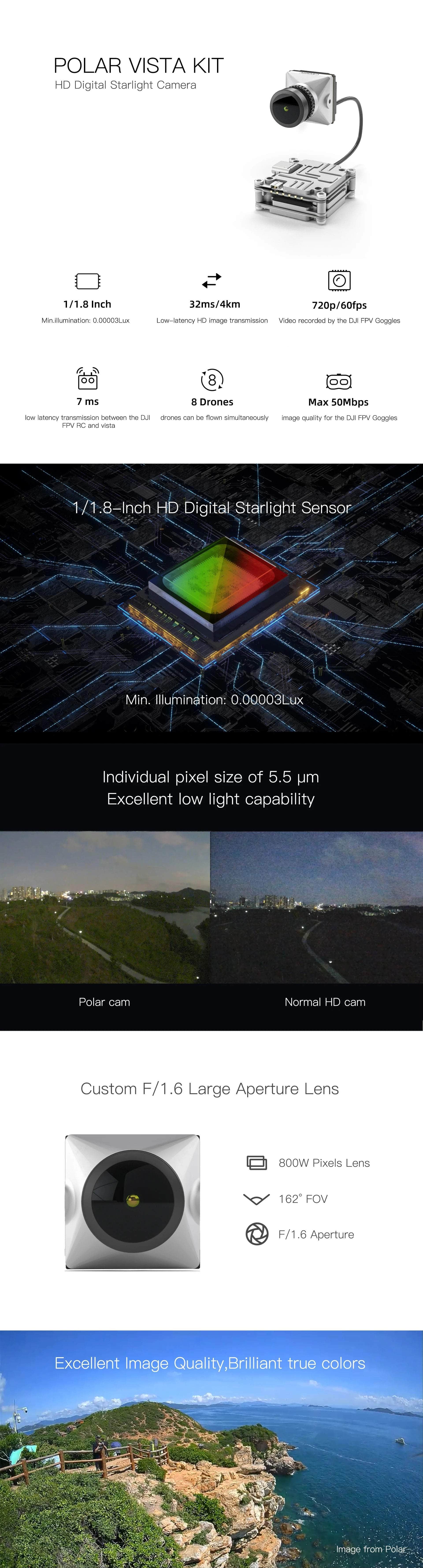

          The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!

          Check out all our DJI-compatible gear and our CADDX product selection!


          Features

          • Lightweight digital image transmission combination
          • Stable and clear HD video
          • 720p 60fps, 32ms/4km
          • 8 channels, 8 drones

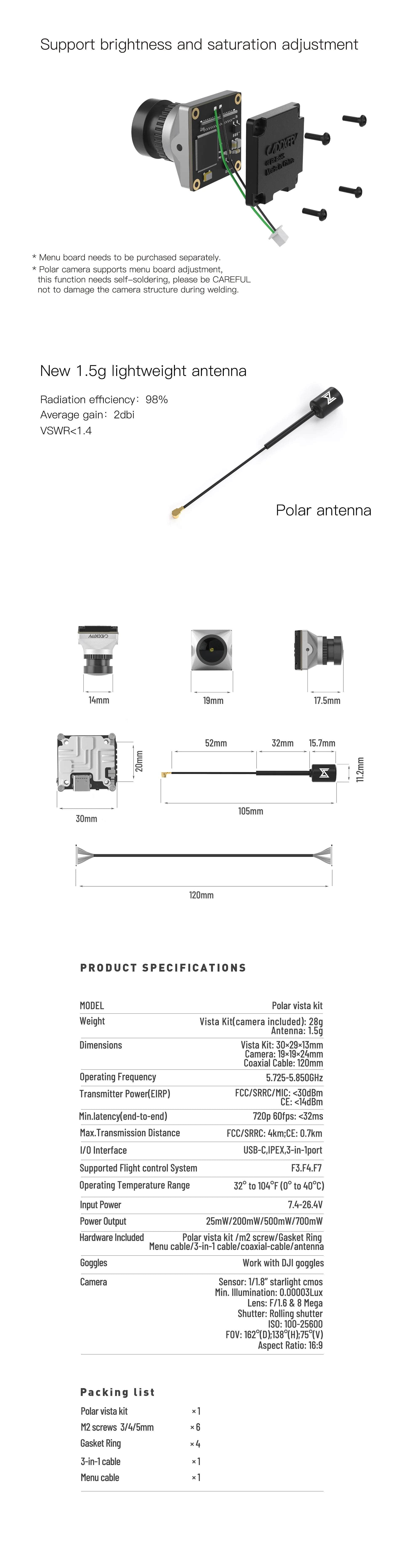

          Specification

          • Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
          • Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
          • Operating Temperature Range: 0°to 40°C(32°to 104°F)
          • Image Sensor: 1/1.8' Inch 2.3Mega starlight sensor
          • Supported Flight Control System: BetaFlight
          • Min.Latency(end-to-end): 720p 60fps<32ms
          • Polar vista kit Weight (Include camera): 28g
          • Operating Frequency: 5.725-5.850GHz
          • I/O Interface: USB-C,IPEX,3-in-1 port
          • FOV: 162°(D); 138°(H); 75°(V)
          • Min. Illumination: 0.00003Lux
          • Antenna Weight: 1.5g(IPEX)
          • Polar cam: 24×19×19mm
          • Input Power: 7.4-26.4V
          • Coaxial Cable: 120mm
          • LENS: F/1.6
          • Vista: 30×29×13.5mm
          • Aspect Ratio: 16:9
          • Antenna: 105mm

          Includes

          • 1x Polar Vista Kit (in silver or coffee colors)
          • 6x M2 screws 3/4/5mm
          • 4x Gasket Ring
          • 1x 3-in-1 cable
          • 1x Menu cable
