Botgrinder Grinderino Freestyle Frame Kit - 5

58.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          7/11/24: Thanks to a loyal customer we'll call JKS, we tinkered with how the grinderino would fly on 5' motors/props. Long story short, we loved it, Botgrinder loved it, and here we are. Now you can choose a grinderino in 5'!

          Once again, Botgrinder and the Ummagawd team make another absolute banger of a frame. - Imagine a Demibot-level frame but in a smaller package!  This frame will fit a single board whoop-style AIO or a 20 x 20 stack. The rear of the frame provides plenty of space to fit a VTX of your choice, and just the same, the front will accommodate any camera. Now updated to fit both 9x9 & 12x12 motor mounts! And, despite its size, it's still under 250g all-up weight!

          The Grinderino arms are now compatible with 9x9mm & 12x12mm motor mounting!

          Be sure to check out all our 5' frames, as well as the rest of our Ummagawd selection!

          Specifications

          • Arms: 4mm
          • Top Plate: 2mm
          • Bottom Plate: 2mm
          • Mid Plate: 2mm
          • Standoffs: 6mm OD 7075 Aluminum
          • FC Mounting: 20x20 and 25.5x25.5 (whoop style)
          • VTX Mounting: 20x20 and 25.5x25.5 (whoop style)
          • Frame Weight: 65g
          • Motor Mounting Pattern: 9mm x 9mm & 12mm x 12mm

          Includes

          • 1x Botgrinder Grinderino Freestyle Frame Kit - 5'
            • 1x Top Plate
            • 4x Arms
            • 1x Bottom Plate
            • 1x Mid Plate (with press nuts)
            • 1x Hardware Kit
            • 1x Ummagrip Battery Pad
            • 2x Battery Straps
            • 1x Set of TPU FPV Camera Mounts

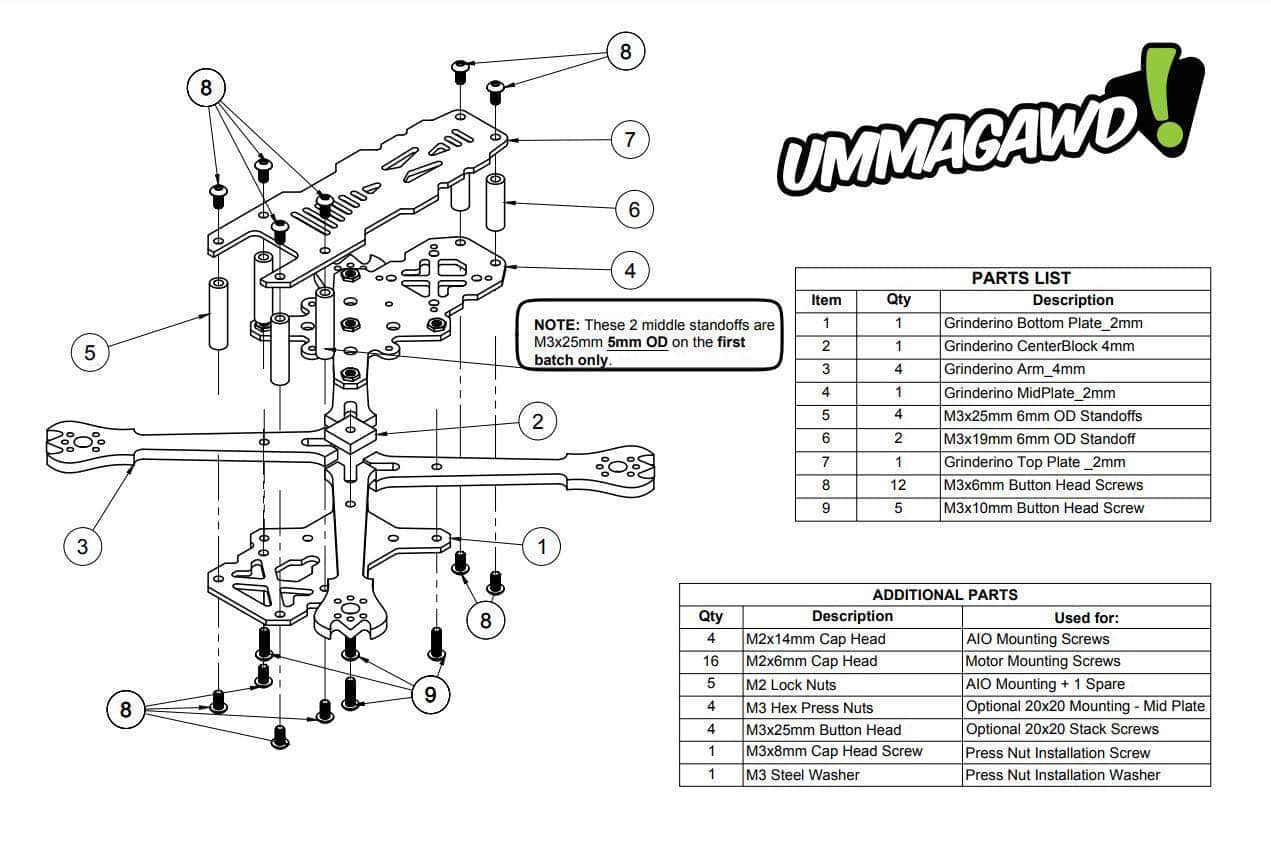

          Build Diagram

          Ummagawd Botgrinder Grinderino 3.5
