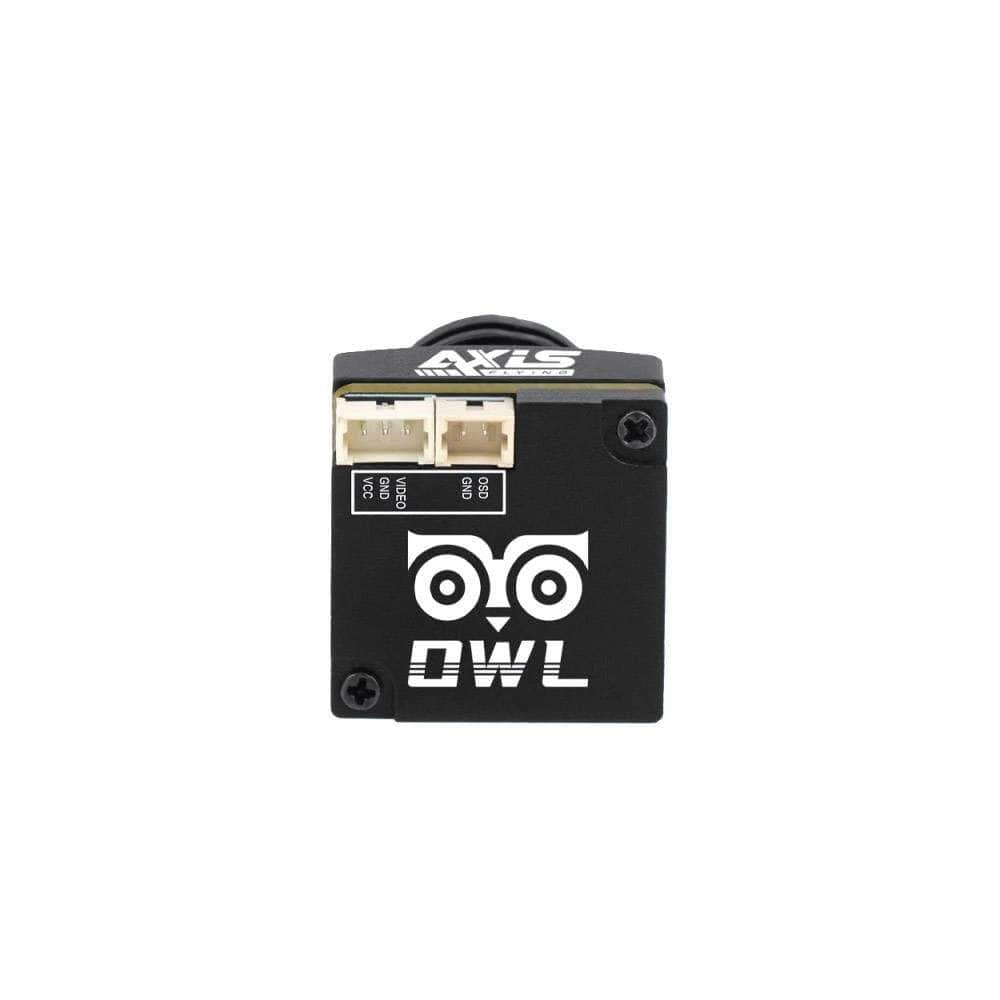

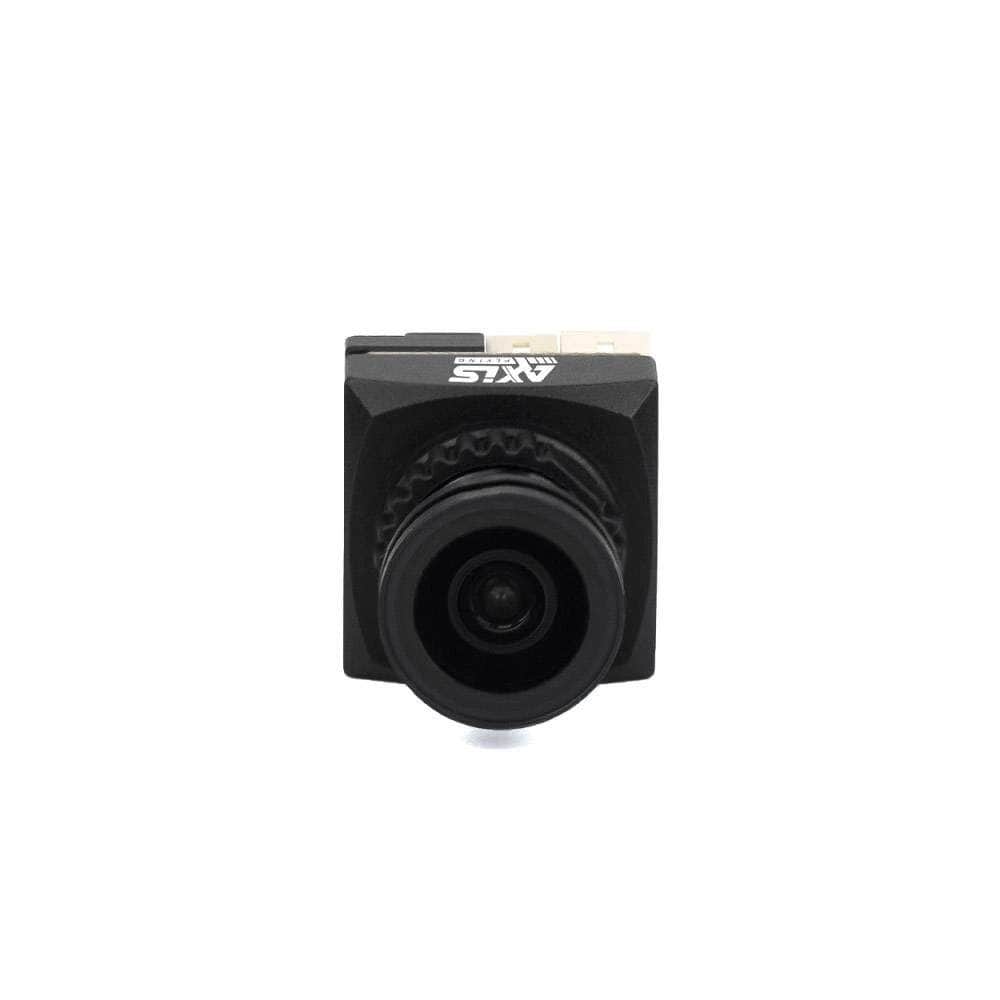

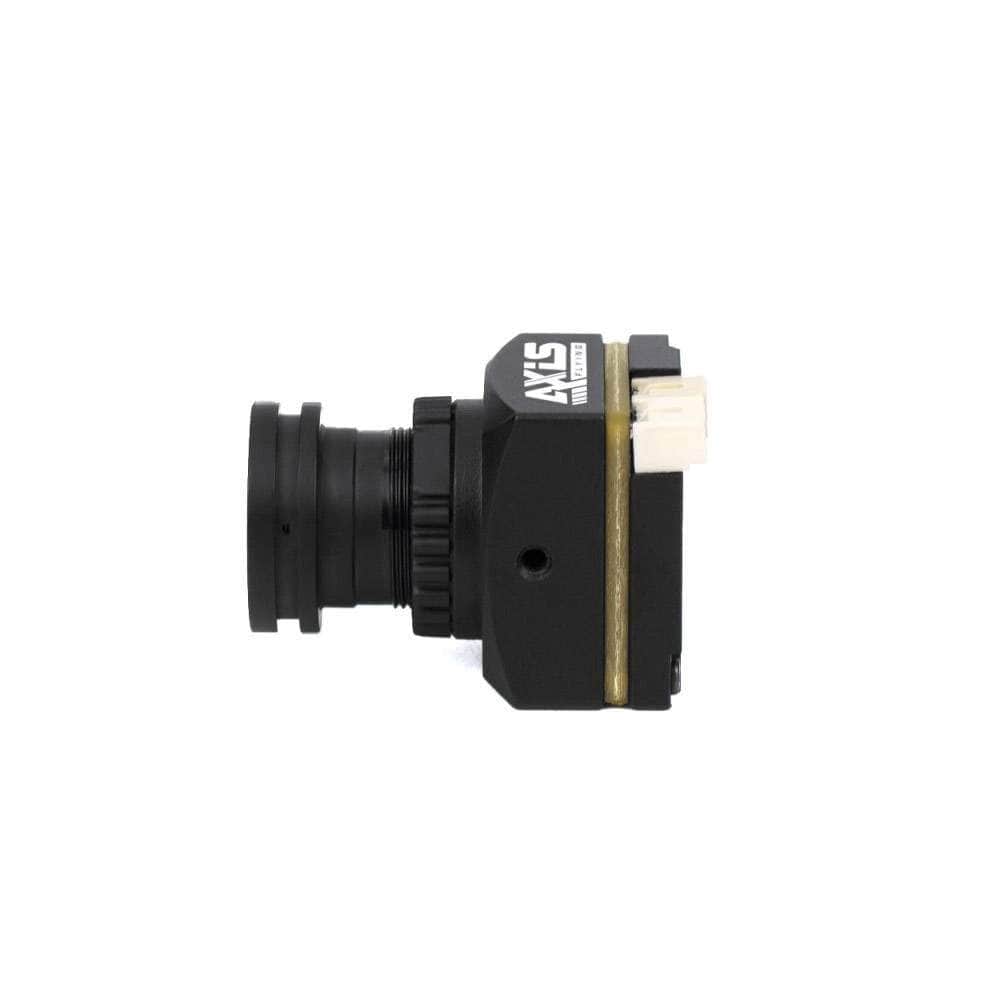

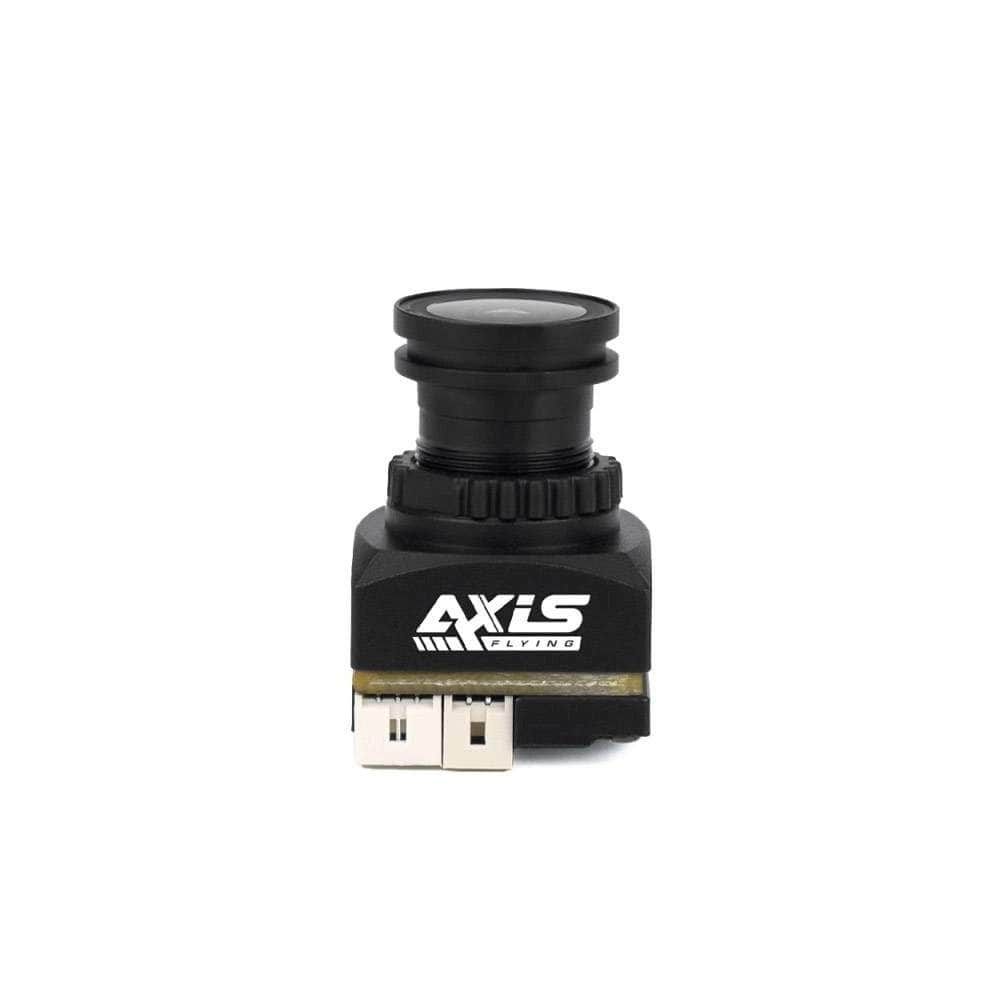

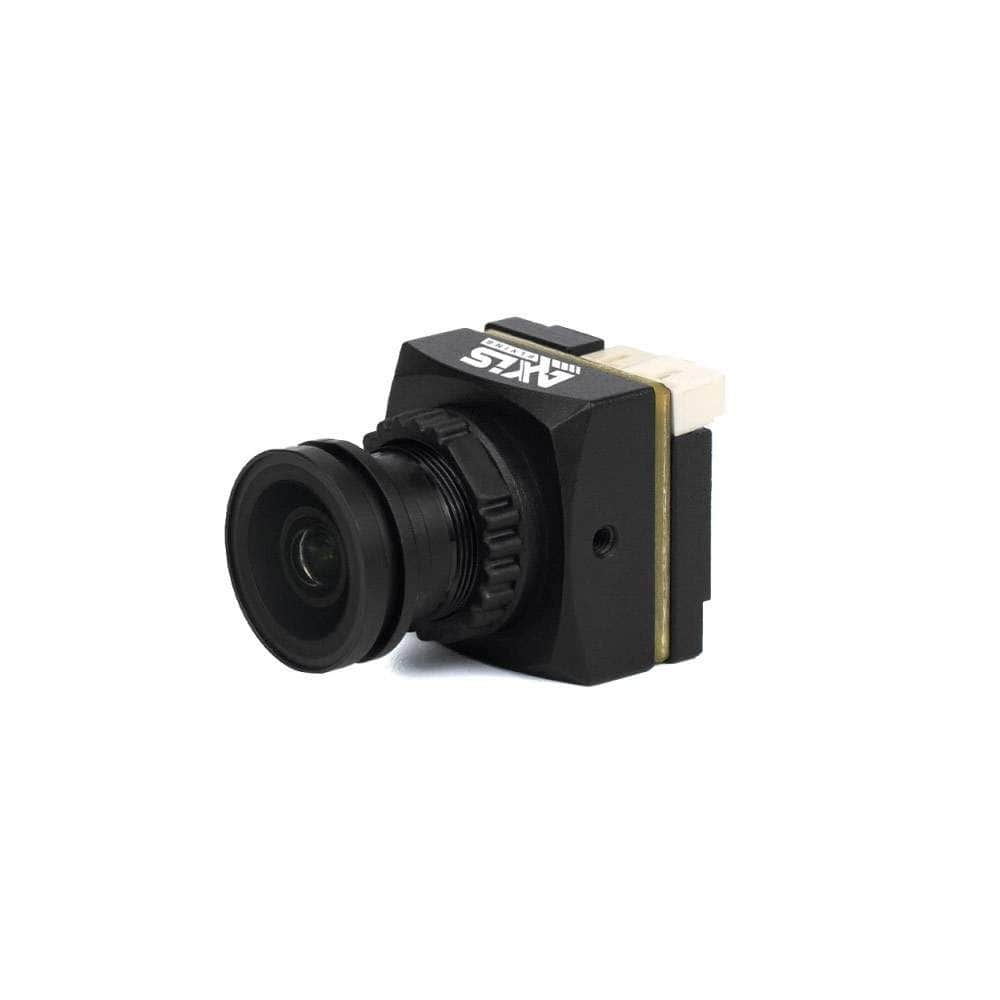

Axisflying OWL Black Light CVBS Coaxial HD Module FPV Camera

The Axisflying OWL Black Light CVBS Coaxial HD FPV Camera is ideal for night flying. Its durable coaxial design ensures clear, HD analog video (CVBS) for reliable visuals in any environment. Upgrade for crisp imaging and dependable performance.

Check out our selection of FPV cameras and all our Axis Flying Products!

Features

• Ideal for Both Day and Night FPV Setups

• High-Definition Analog Video (CVBS)

• Exceptional Low-Light Performance

• Reliable Imaging Quality

• Durable Coaxial Design

Specifications

• Night Vision Support: Yes (night vision supported, infrared not supported)

• Control Options: External Control (Default)/Auto/Color/Black & White

• Operating Humidity: Relative Humidity Below 90%

• Power Supply & Current: 4.5~42V, 80mA @ 12V

• Operating Temperature: -40°C to 75°C

• Minimum Illumination: 0.00001 Lux

• Product Name: OWL Black Light

• Effective Pixels: 1928H x 1088V

• Day/Night Mode: Night Vision

• Dimensions: 19.6 x 19.6 mm

• Signal-to-Noise Ratio: 40dB

• Frame Rate: 1080P @ 60fps

• Sync Method: Internal Sync

• System Format: PAL/NTSC

• Pixel Size: 3.0μm x 3.0μm

• Dynamic Range: 72dB

• Video Output: CVBS

• Sensor Type: 1/2.7'

• Shutter: AUTO

FUNCTIONS/CONTROL

• OSD Menu Control: Contrast/Sharpness/Saturation/Digital Noise
• Reduction/Mirroring

• Exposure Control: Brightness/Exposure Mode/Gain/Digital WDR

• Image Settings: Menu Control, Restore Factory Settings

• White Balance: Auto Tracking/Manual White Balance

• Language Support: 14 languages

LENS

• Horizontal Field of View: 101°

• Relative Illumination: 43.5%

• Focal Length: 3.3mm

• Distortion: < -54%

• Design: 2G5P

• Aperture: 1.1

Includes

• 1x Axisflying OWL Black Light CVBS Coaxial HD Module FPV Camera
