Aikon 3-6S F7 Mini AIO Whoop Flight Controller w/32Bit 45A 4in1 ESC

The Aikon flight controller is a new generation flight controller and ESC combination specifically designed for cinewhoops and other high-current applications. We've packed all the greatest features into one seamless flight experience.

Check out our other AIO flight controllers and the rest of our Aikon gear!

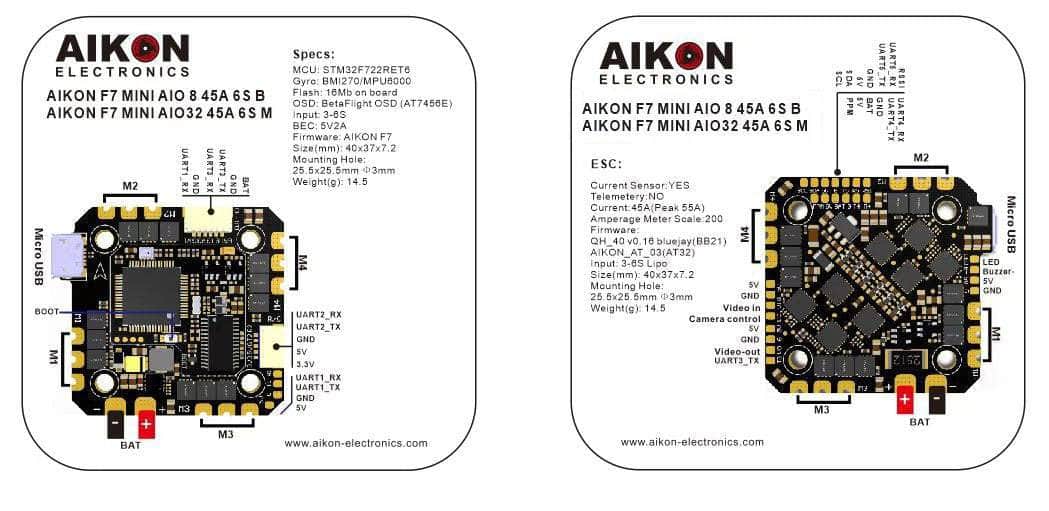

Features

• 216mhz F7 processor
• Independent FC and ESC PCBs for low noise
• 5 Software invertible hardware UARTS
• Onboard OSD and BlackBox
• Software-controlled VTX power switch (assigned to USER1 mode by default)
• Connectors for DJI-HD and RC link
• LED and buzzer outputs (LED pad doubles as PPM)
• On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
• 10v 1.5A voltage regulator for DJI HD system
• 3.3mm high current MOSFETs.

Specifications

• Battery: 3-6S
• Mounting Holes: 25.5x25.5mm
• FC Firmware: Betaflight AIKONF7 Target
• MCU: STM32F722
• IMU: MPU6000
• Barometer: DSP310
• Blackbox: SPI 16MB
• ESC Firmware: BLHeli_32
• Constant Current: 45A
• Burst Current: 55A
• Current Sensor Scale: 200
• Weight: 14.5g

Includes

• 1x Aikon F7 Mini 25x25 AIO Flight Controller w/ 45A 32bit ESC
