iFlight Helion 10 Frame Kit

359.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

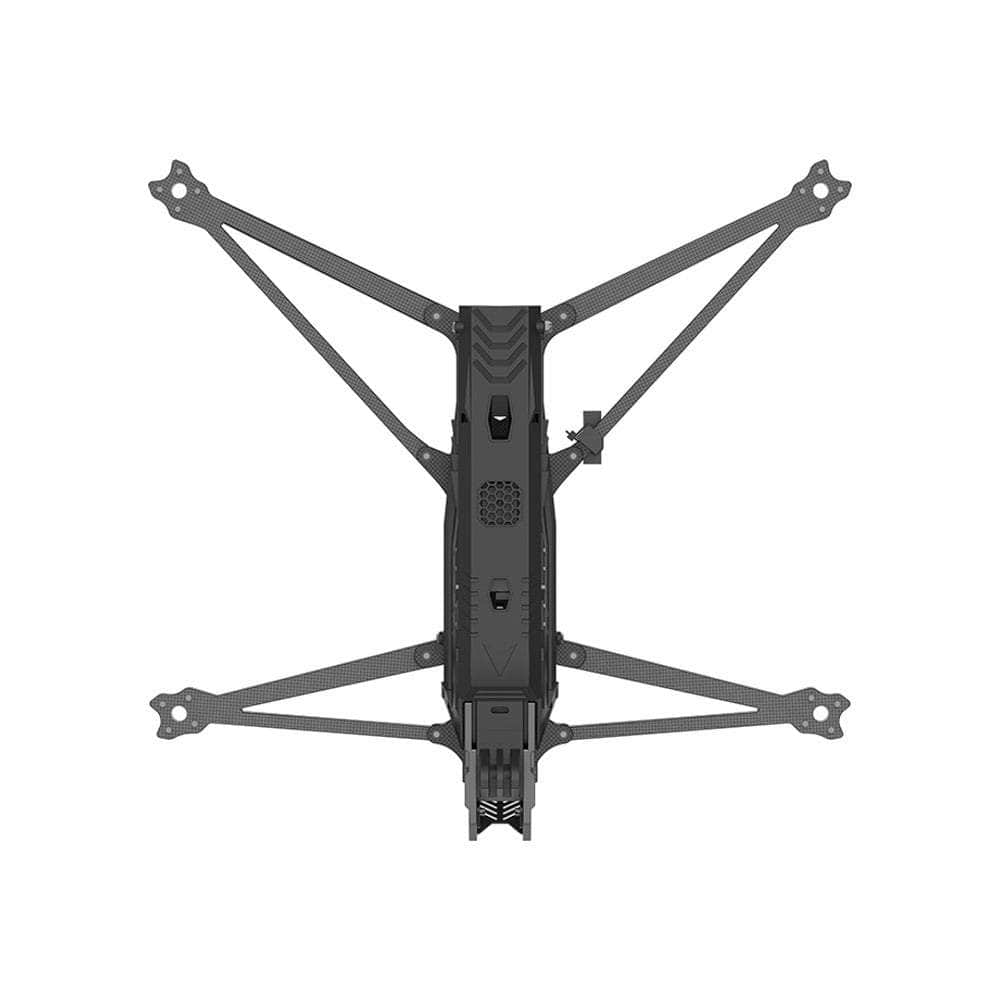

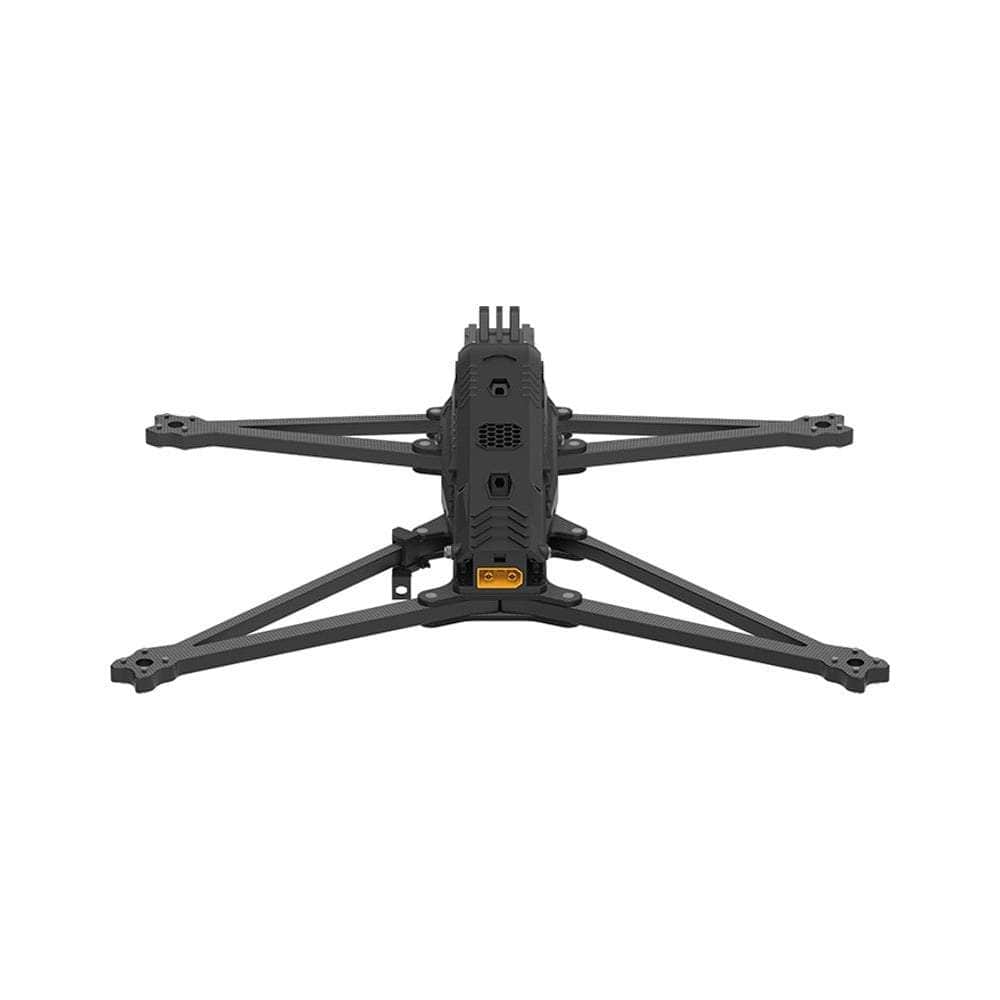

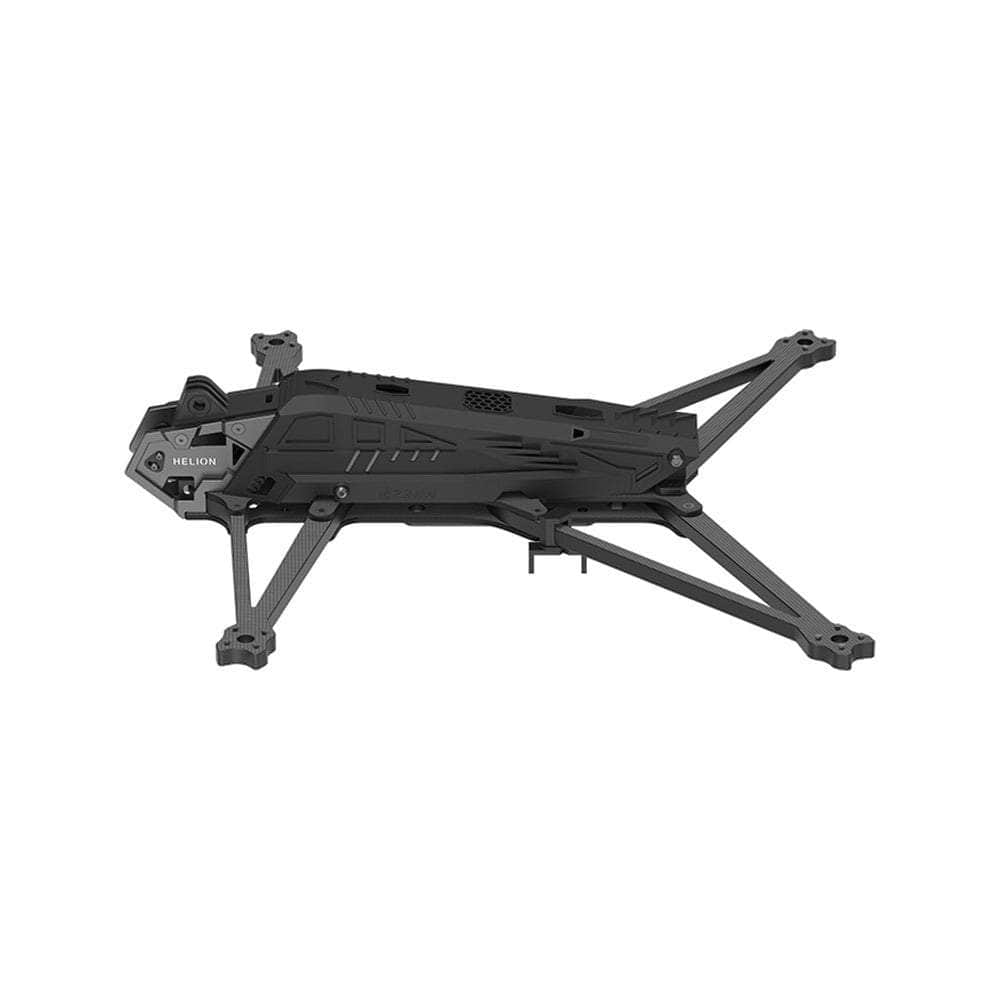

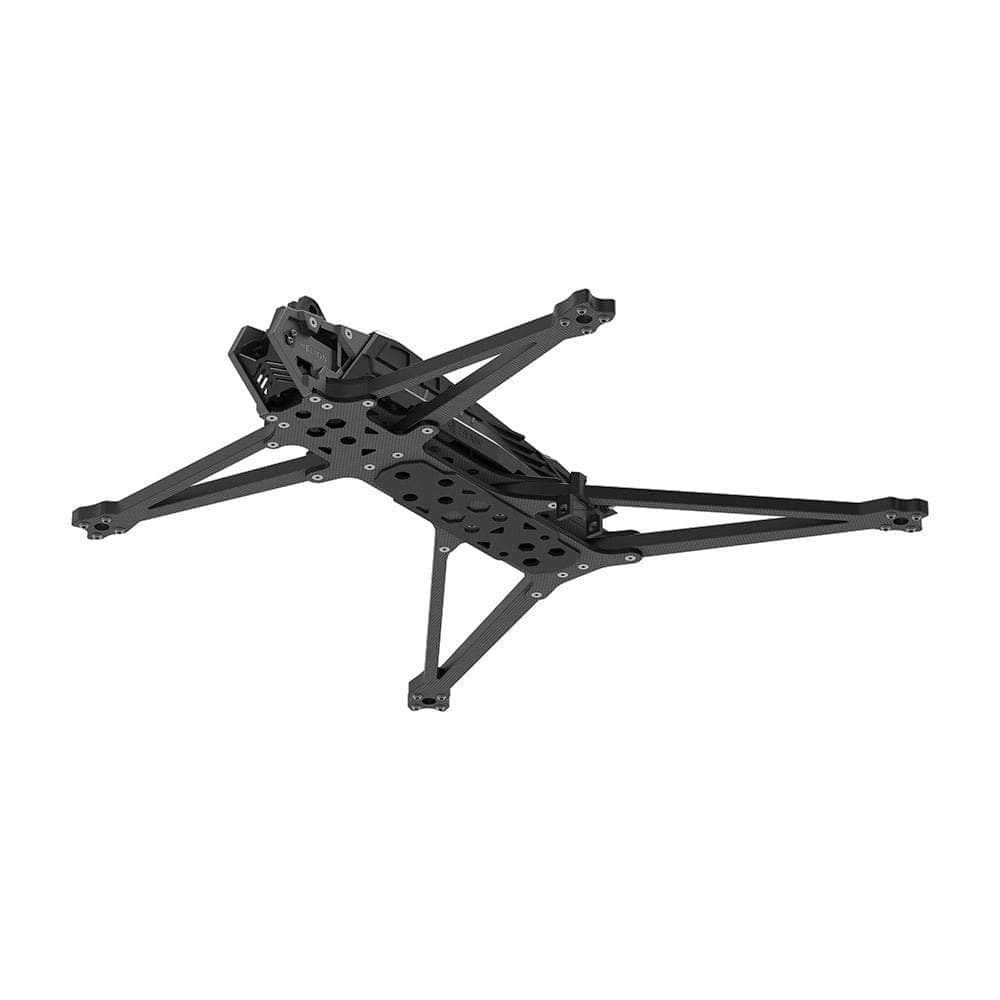

          The iFlight Helion 10' Frame Kit is a 10-inch long-range flagship frame by 2RAW and ilfight, Now updated to support the DJI O4 Pro Air Unit and reinforced with v1.1 structural upgrades,built for maximum flight time, stability, and control. Optimized for high-capacity batteries and windy conditions, it features an aerodynamic shell for easy maintenance and drivetrain protection.

          Check out our iFlight selection, as well as all our other +6' frames!

          Features

          • Optimized for endurance flights
          • Ultra long-range performance
          • Vibration & torsion reduction
          • Stable in windy conditions
          • High efficiency & control
          • Easy drivetrain access

          Specifications

          • Flight Stack Mounting: 30.5×30.5 / Φ3mm
          • Frame Dimensions: 324×264×63mm
          • VTX Mounting: 25.5×25.5 / Φ2mm
          • Motor Mounting: 19×19 / Φ3mm
          • Max Flight Stack Height: 21mm
          • Bottom Plate Thickness: 4mm
          • Upper Plate Thickness: 4mm
          • Max VTX Height: 22mm
          • Arm Thickness: 8mm
          • Wheelbase: 418mm
          • Body Height: 63mm
          • Geometry: A-Frame
          • Weight: 540±20g

          Includes

          • 1x iFlight Helion 10' Frame Kit
