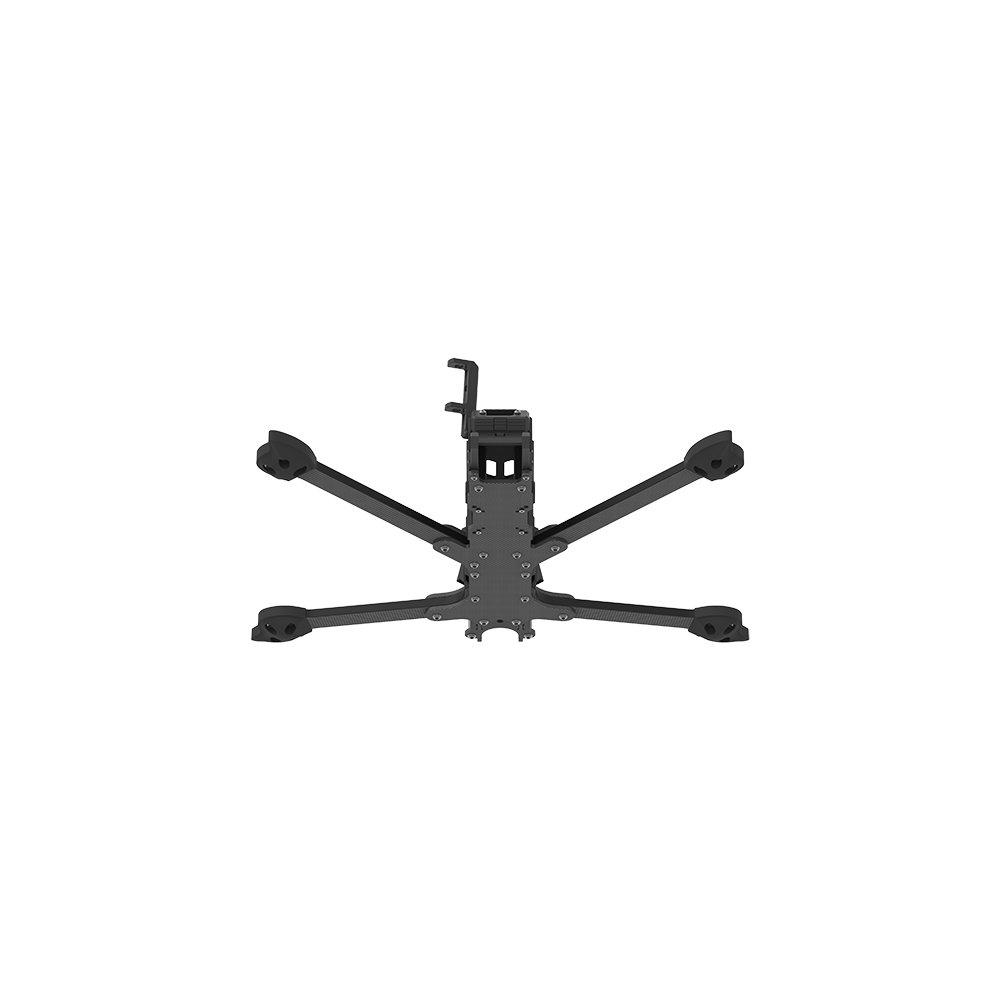

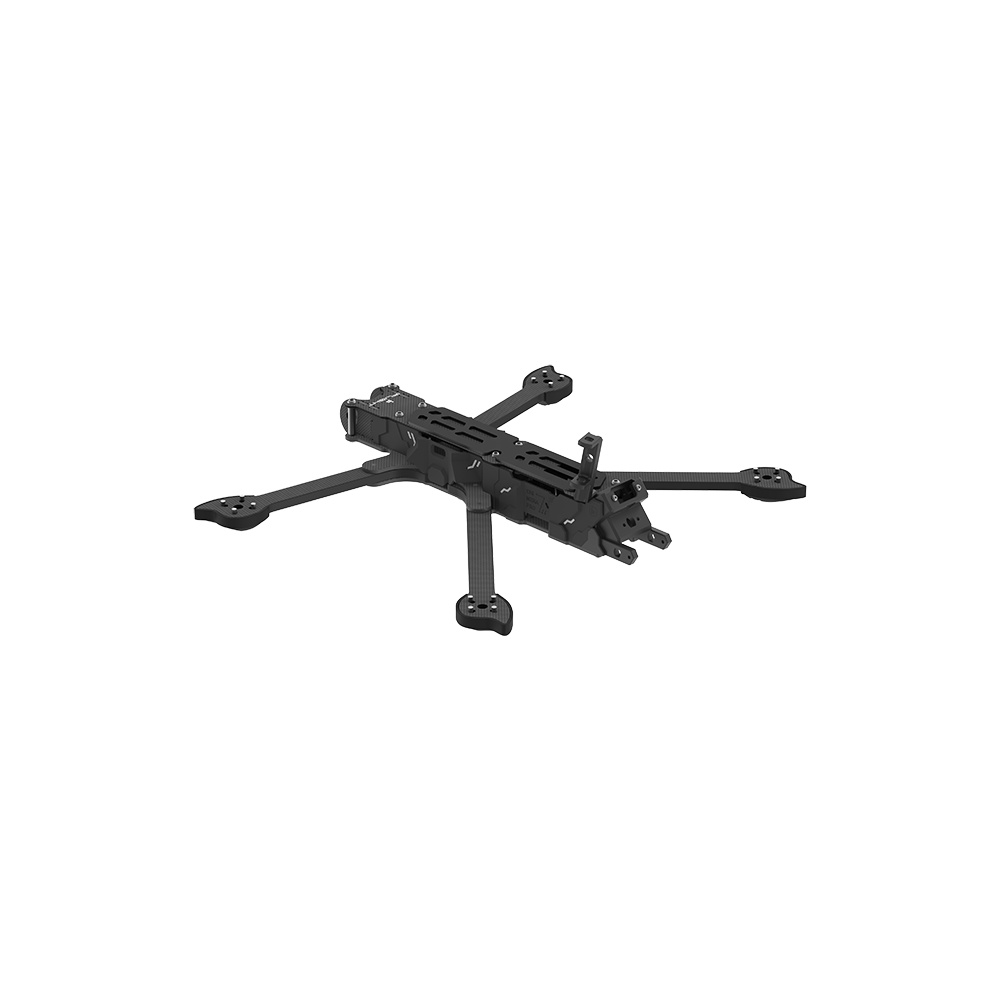

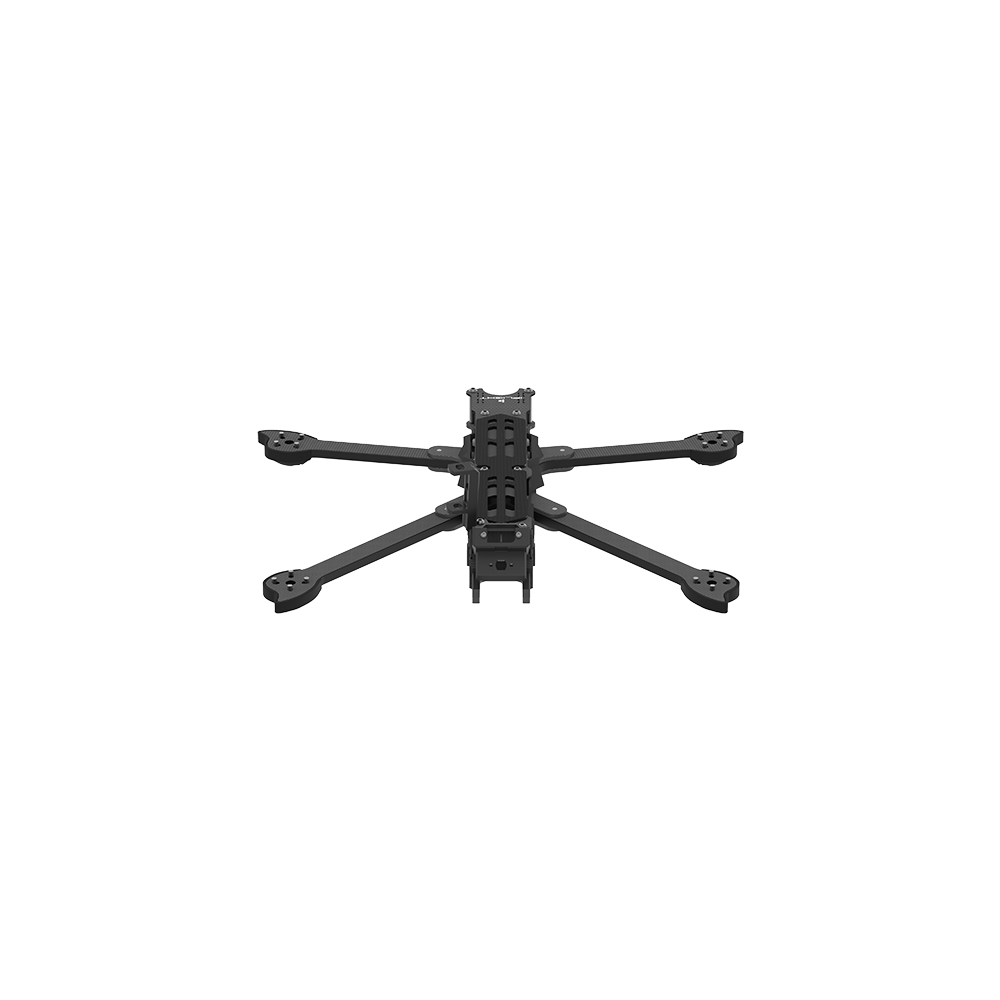

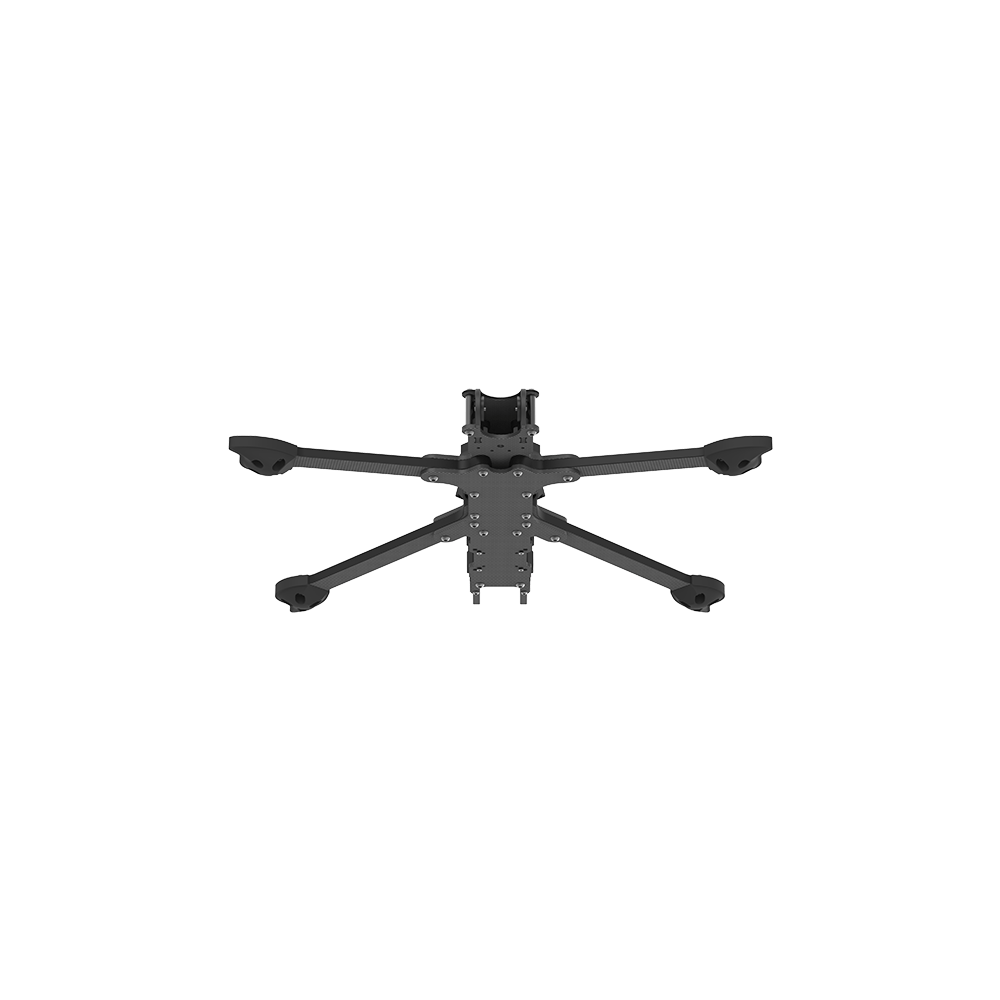

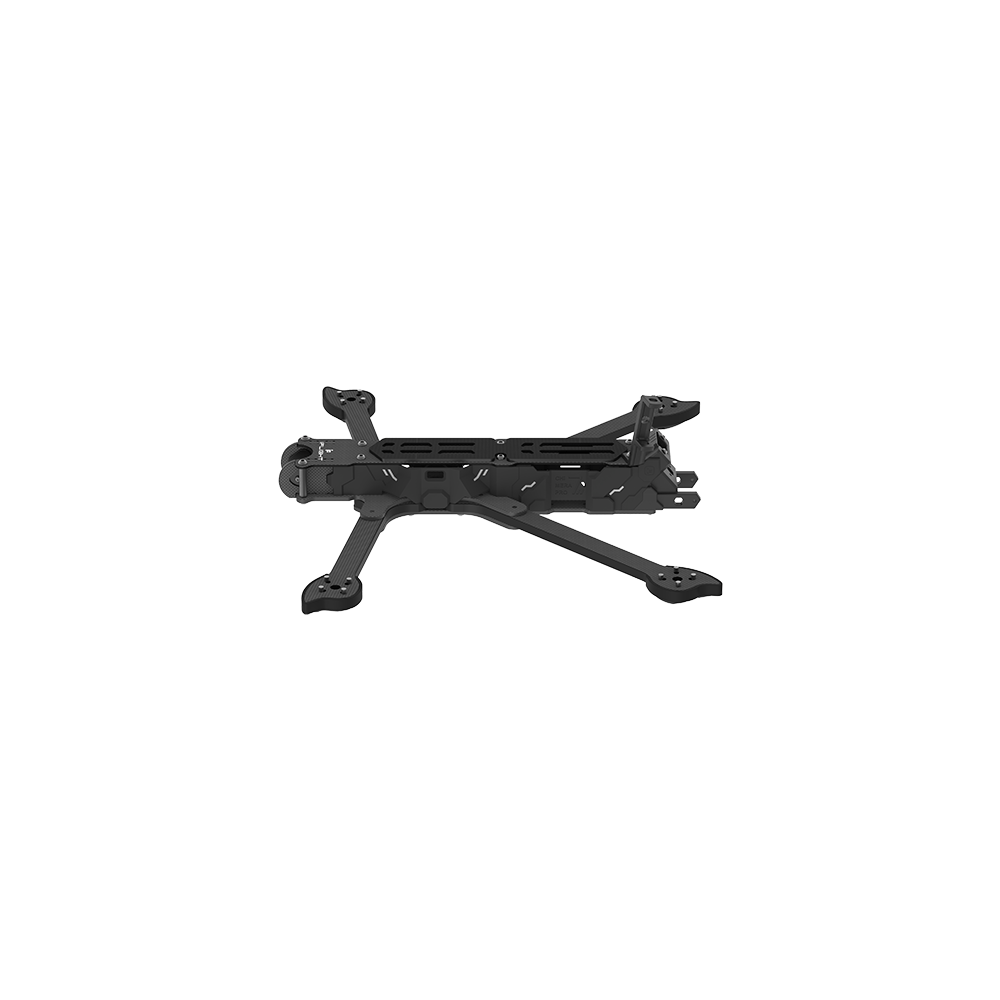

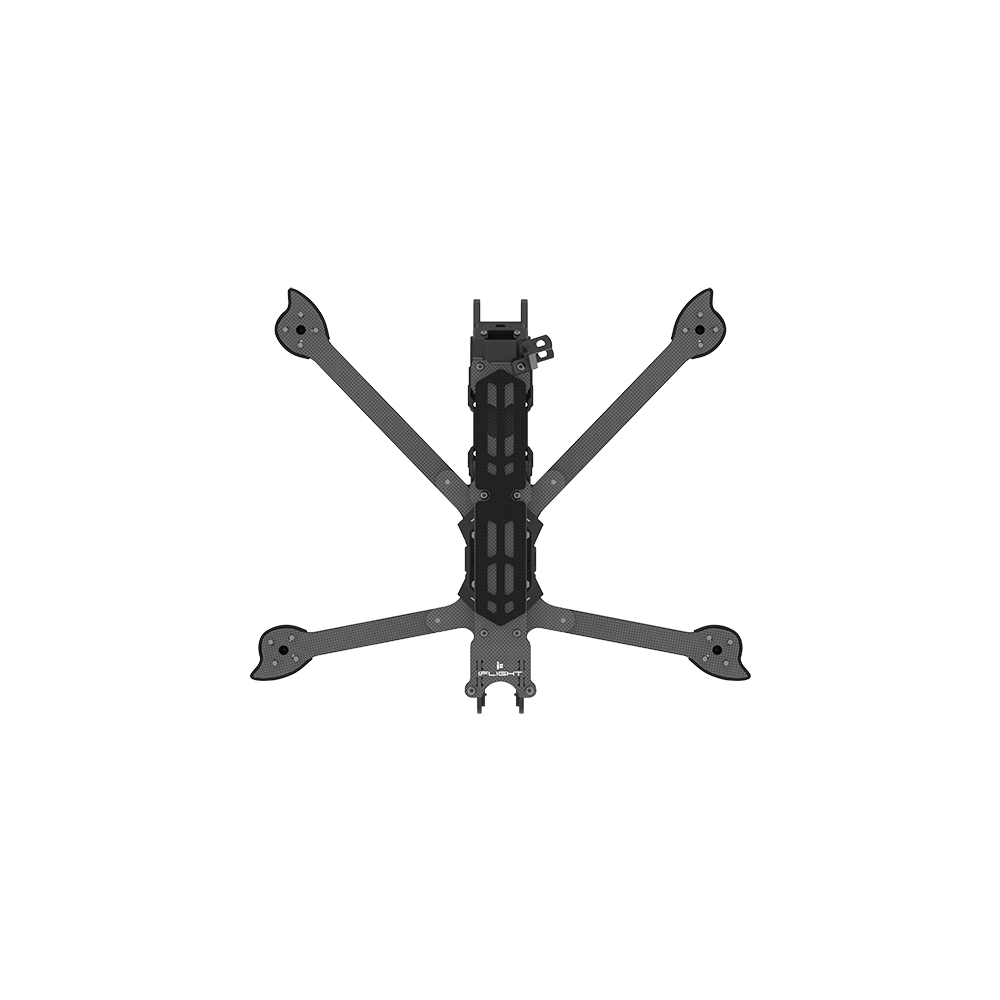

iFlight Chimera7 ECO 7 Frame Kit

The KING of Long Range FPV! A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance.

Check out all of our 6' + frames and our selection of iFlight gear!

Features

• 30.5x30.5mm, 25x25mm, or 20x20mm for almost any VTX mounting
• 16x16mm or 19x19mm Motor Mounting
• 6mm Arm Thickness

Specifications

• Wheelbase: 327mm

• Geometry: DeadCat (DC)
• Frame Dimension: L270xW199xH34 mm

• Frame Body Dimension: 34mm

• Arm Thickness: 6mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 2mm

• Upper Plate Thickness: 3mm

• Camera Plate Thickness: 3mm

• Max Flight Stack Height: 21mm

• Max VTX Height: 30mm

• Flight Stack Mounting: 30.5x30.5mm /φ3mm

• VTX Mounting: 30.5x30.5 φ3mm / 25x25 φ1.6mm / 20x20 φ2mm

• Motor Mounting: 16x16mm / 19x19mm φ3mm

• Weight: 357g

Includes

• 1x iFlight Chimera7 ECO 7' Frame Kit
• 1x TPU Set

• 1x Screw Bag

• 1x Anti-Slip Battery Pad

• 2x Battery Strap

• 4x AMASS MR30 Plugs
