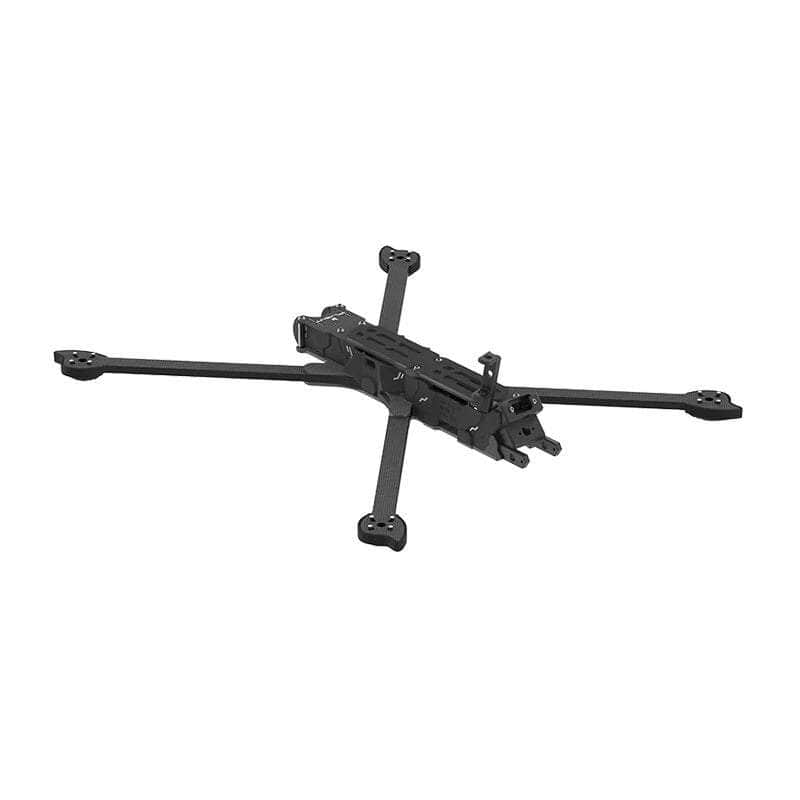

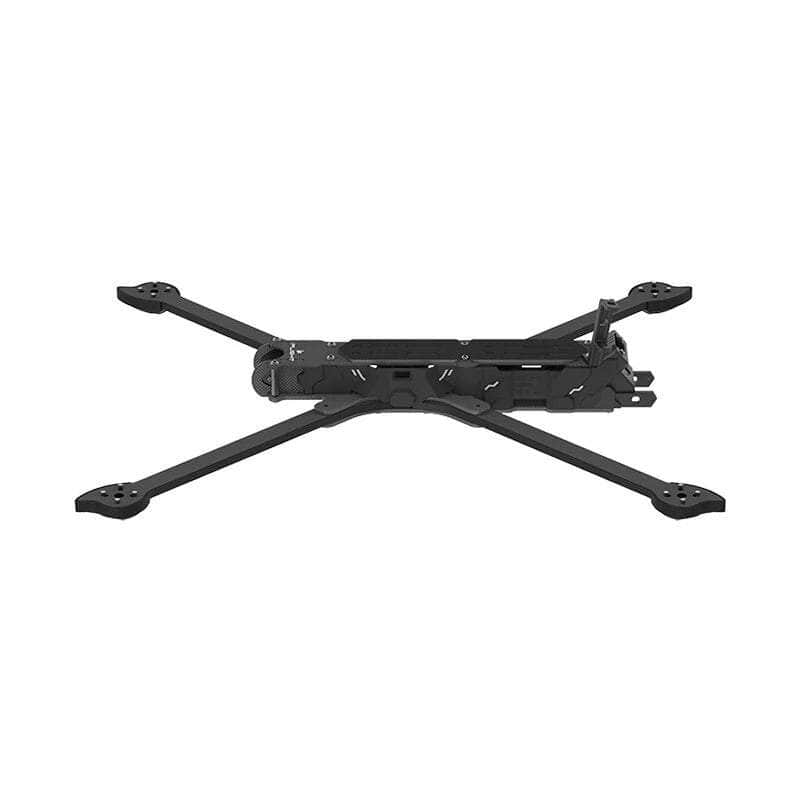

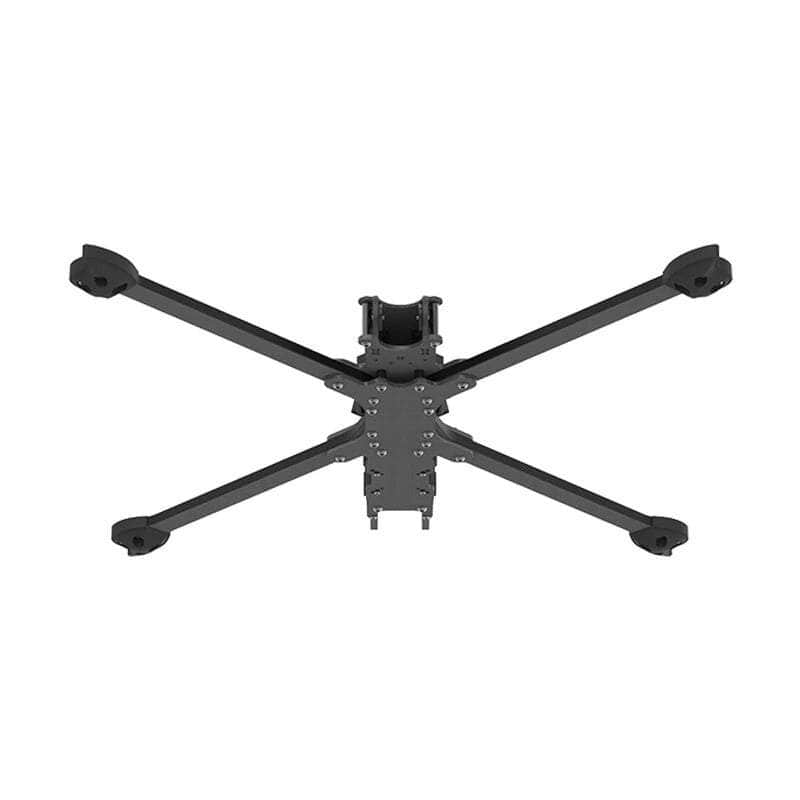

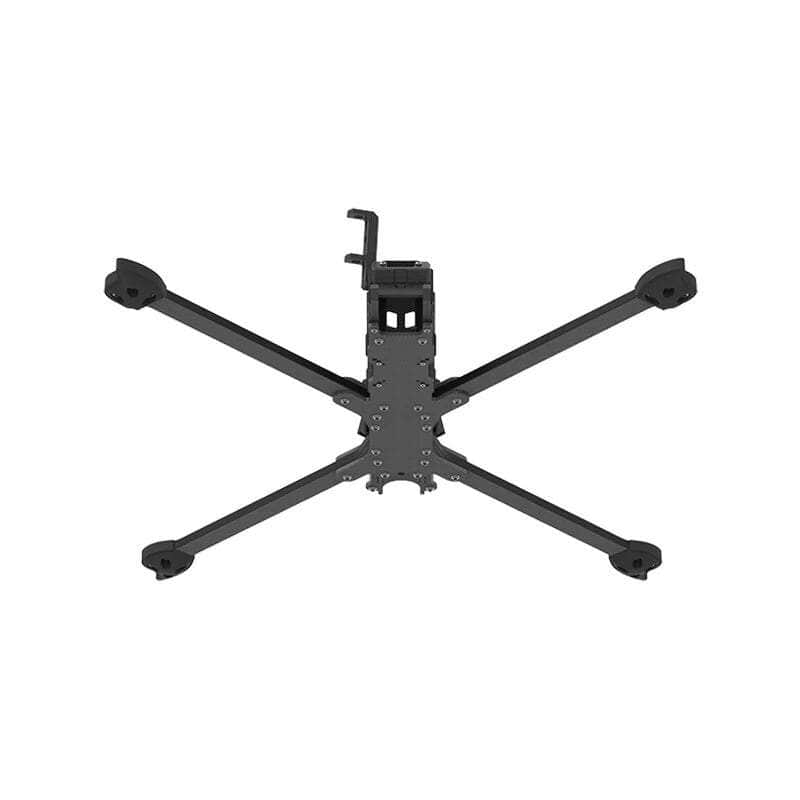

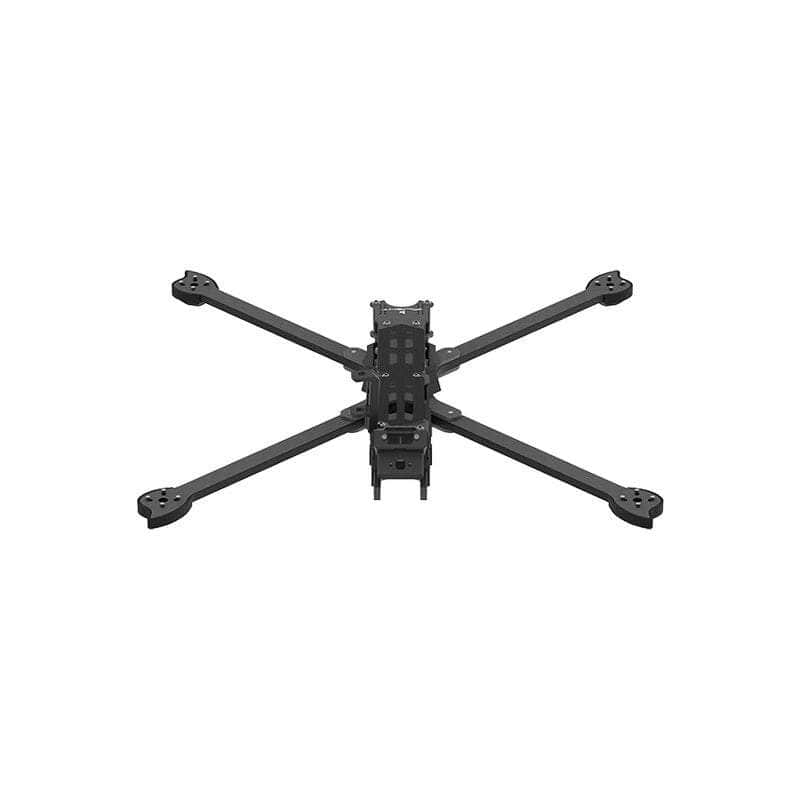

iFlight Chimera CX10 10 Frame Kit

119.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          iFlight is proud to announce the release of the CX10 Frame. The CX10 is a 10' size quadcopter, and will fit  the DJI O3 Air Unit system or Caddx Digital FPV system on it.

          Check out all of our 6' + frames and our selection of iFlight gear!

          Features

          • 30.5x30.5mm, 25x25mm, or 20x20mm for almost any VTX mounting
          • 16x16mm or 19x19mm Motor Mounting
          • 6mm Arm Thickness

          Specifications

          • Product Name:452mm Wheelbase 10 inch Frame Kit
          • Wheelbase: 452mm
          • Frame Dimension: L338xW299xH34mm
          • Arm Thickness: 6mm
          • Bottom Plate Thickness: 3mm
          • Top Plate Thickness: 2mm
          • Upper Plate Thickness: 3mm
          • Maximum Flight Stack Height: 21mm
          • Max VTX Height: 30mm
          • Flight Stack Mounting: 30.5x30.5mm φ3mm
          • VTX Mounting:20x20 Φ2mm/ 25.5x25.5 Φ1.6mm/ 30.5x30.5 Φ3mm
          • Motor Mounting:16x16mm/19x19mm Φ3mm
          • Weight: 383g

          Includes

          • 1x iFlight Chimera CX10 Frame Kit
          • 1x TPU Set
          • 1x Screw Bag
          • 1x Anti-Slip Battery Pad
          • 2x Battery Strap
          • 4x AMASS MR30 Plugs
