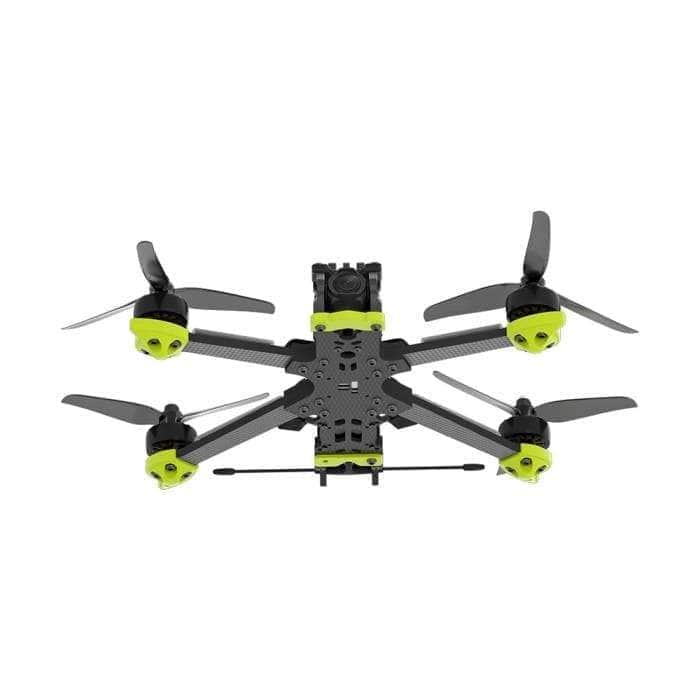

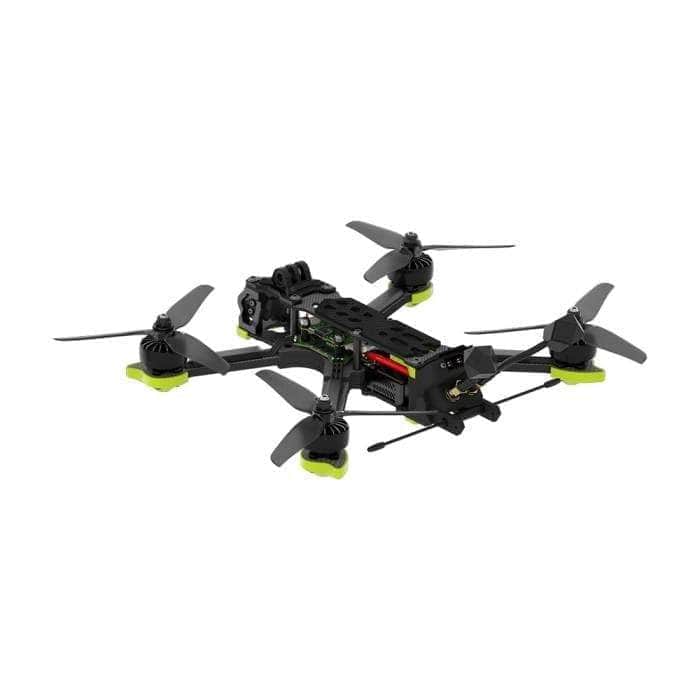

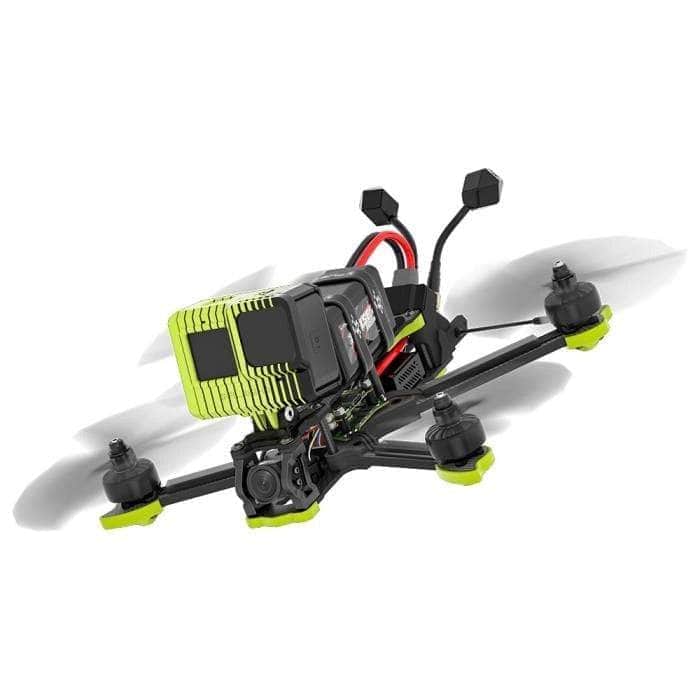

iFlight BNF Nazgul DC5 ECO 6S 5 HD w/ DJI O3 Air Unit

This Nazgul DC5 ECO HD 6S is a 5-inch BNF (Bind-and-Fly) quadcopter that comes with the DJI Newest O3 Digital HD System and Nazgul 5' 3-Blade propellers. The Nazgul DC5 has been pre-tuned and set up with everything you need; all you need to do is bind and fly! Loaded with lots of power, it comes with the XING-E Pro 2207 6S motors, BLITZ F7 Flight Controller, and the BLITZ E55S 2-6S 55A 4-in-1 ESC, making this quad a must-have!

Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!

Changelog:

July 19, 2024: Battery Plug mount updated to a fixed form. The Drone upgraded to V1.1.

Sept. 10, 2024: Product upgrade: the side panels will be installed by default.

Sept. 18, 2024: Top Plate updated, same as the top plate of Nazgul5 V3 and Nazgul XL5.

Note: As of May 8, 2024, the Albatross antenna is available in two versions, and they will be shipped randomly.

Features

• XING-E 2207 Motors and NAZGUL F5 Props

• Compatibility with 5.1' Style Propellers

• No Props or Frame in View

• LED Illuminated Logo

• DJI O3 HD System

• 5mm Arm Design

• Easy-Swap Arms

Specifications

• Max Hover Time: Approx. 7.5 mins (With 6S 1400mAh no load)

• Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

• Takeoff Weight: Approx. 675g (With 6S 1400mAh battery)

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)

• Product Name: Nazgul DC5 ECO O3 6S HD

• Motor: XING-E Pro 2207 1800KV motors

• Dimensions (L×W×H): 193×144×34 mm

• Max Speed: 190 km/h (Manual Mode)

• Max Wind Speed Resistance: Level 7

• Video Transmission: DJI O3 Air Unit

• Maximum Takeoff Altitude: 7000 m

• ESC: BLITZ E55S 4-IN-1 ESC

• Prop: Nazgul F5 propellers

• Frame: 240mm wheelbase

• Geometry: DC (DeadCat)

• Antennas: Dual Antenna

• FC: BLITZ F722 FC

• Weight: 450g

VIDEO TRANSMISSION

• Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

• Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)

• Operating Temperature Range: -10º to 40º C (14° to 104° F)

• Communication Bandwidth: Max 40 MHz

• Max Video Transmission Bitrate: 50 Mbps

• Product Name: DJI O3 Air Unit

• Audio Transmission: N/A

• FOV (single screen): 155°

• Power Input: 7.4-26.4 V

• End-to-End Latency:

• With DJI FPV Goggles V2:

  • 810p/120fps Video Transmission Quality: The latency is lower than 28 ms

  • 810p/60fps Video Transmission Quality: The latency is lower than 40 ms

• With DJI Goggles 2:

  • 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms

  • 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms

Includes

• 1x iFlight BNF Nazgul DC5 ECO 6S 5' HD w/ DJI O3 Air Unit
• 2x Battery Pads

• 4x Propellers

• 2x Antennas
