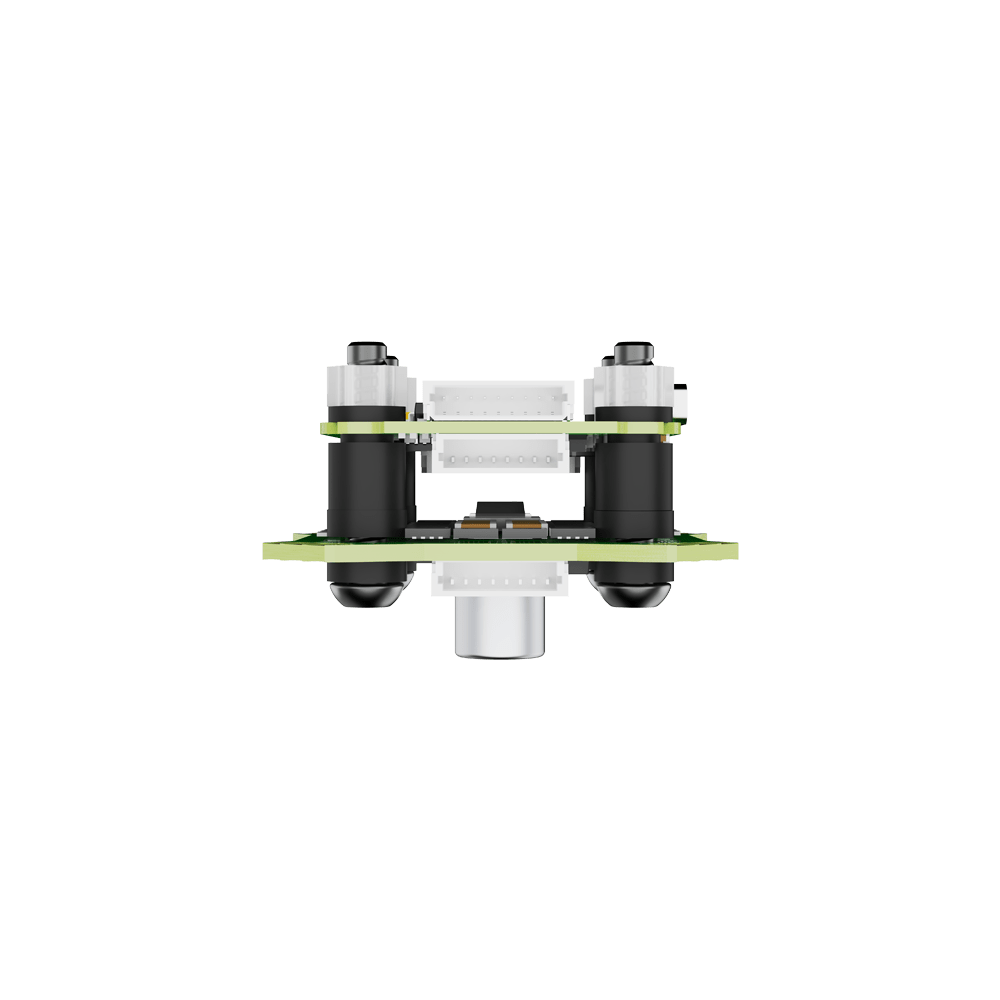

iFlight BLITZ Mini F7 V1.2 2-6S 20x20 Stack/Combo (F7 FC/ 55A 32Bit 4in1 ESC)

The V1.2 of the iFlight Blitz Mini F7 E55 2-6S 20x20 Stack/Combo has arrived, now in Mini version. These new flight controllers are equipped with a plug and play connectors making connecting your video transmitter, radio receiver, and other periphery sensors a breeze.

Check out all our 20x20 stacks as well as our entire iFlight selection!

Features

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging

Specifications

-October 20, 2023: Flight control Blackbox flash capacity changed from 16MB to 8MB
-April 6, 2024: The flight control is updated to version V1.2, and the gyroscope is changed from BMI270 to ICM42688.

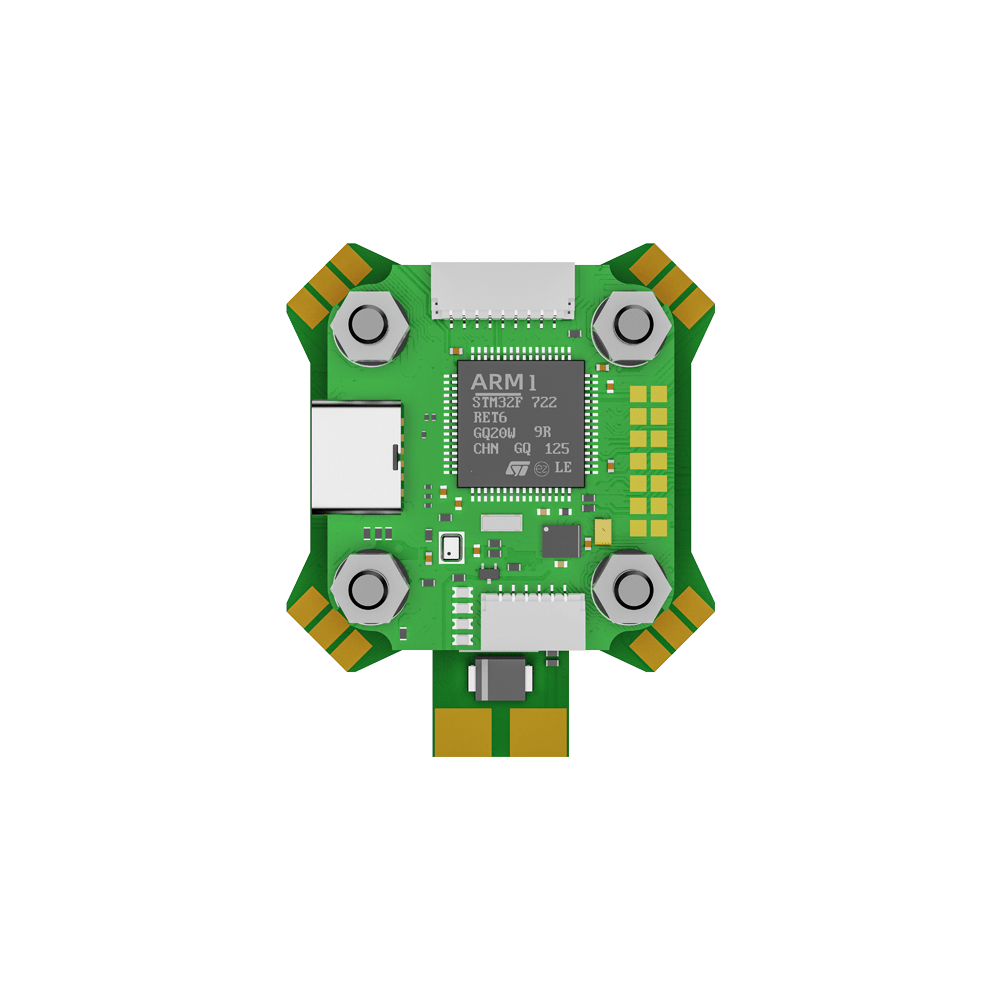

Flight Controller

• MCU: STM32 F722
• Gyro: ICM42688
• Barometer: DPS310
• OSD Chip: AT7456
• Flash: 8MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
• Dimensions: 30.5x27 mm
• Weight: 5g

Wiring Suggestion

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemetry

ESC

• Model: E55 V1.3
• Mounting Holes: 20x20mm/Φ4mm
• Weight: 11.3g
• Supports 2-6S Lipo input
• MCU： G071
• Constant: 55 Amps
• Burst: 65 Amps
• Current sensor: Yes
• BEC: No
• Current rate: 200
• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• Firmware: BLHeli 32
• Target: IFLIGHT_BLITZ_G071_01 32.9
• Firmware: BLHeli 32

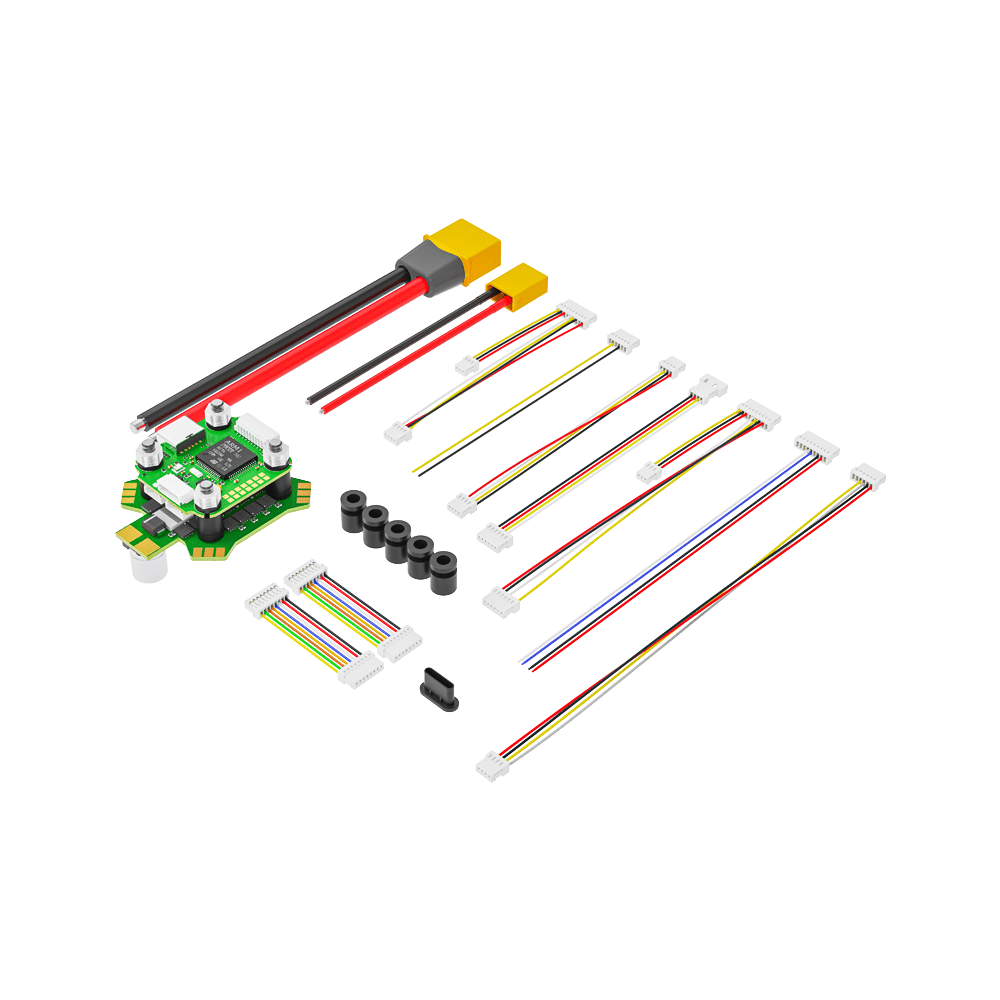

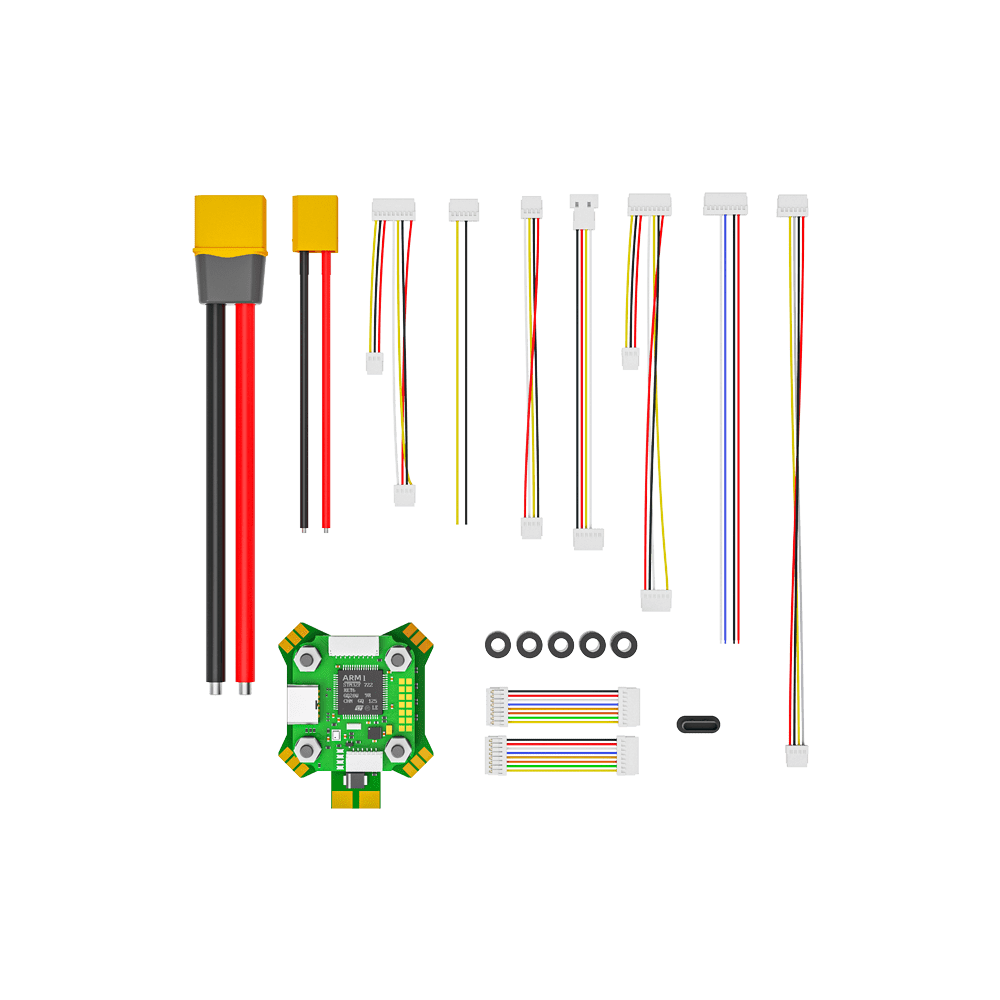

Includes

• 1x iFlight BLITZ Mini F7 V1.2 2-6S 20x20 Stack/Combo (F7 FC/ E55 V1.3 32Bit 55A 4in1 ESC)
• 1x Silicon grommets
• 1x Wire harness for F7 FC
