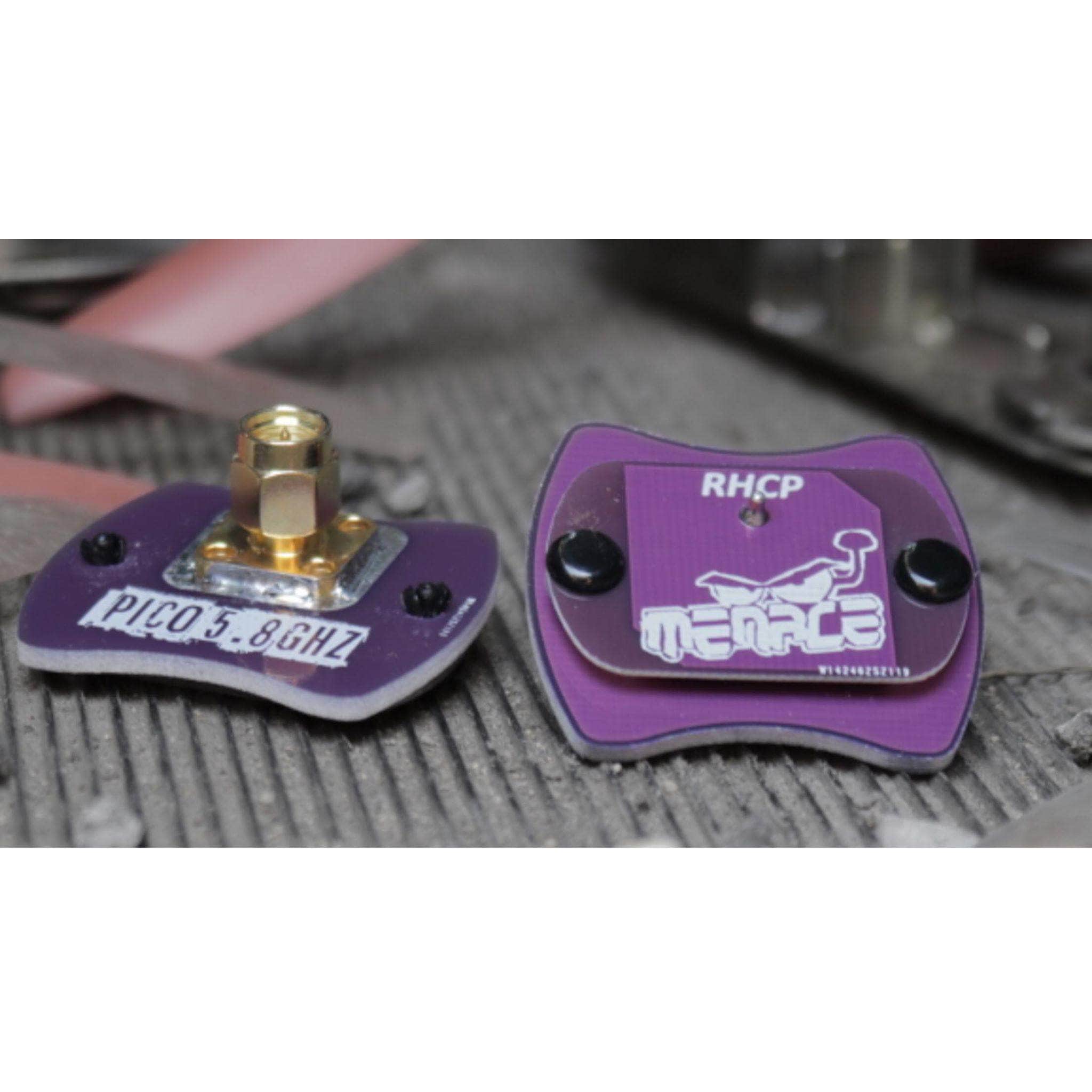

MenaceRC Pico Patch 5.8GHz SMA Receiver Antenna - RHCP

The Menace PICOpatch antenna is our smallest receiving patch that is big in performance, perfect partnering with a circular polarized omni style transmitter antenna.

Check out all our FPV Receivers & Antennas and our Menace selection!

Features

• Highest Sensitivity for increased range
• Ergonomic design to fit diversity modules on Fat Shark & other goggles
• Can stay on your goggles in the carry case.
• 5.8ghz Frequency Bands Compatible
• Circular Polarized for left or right hand
• Designed for goggles or base stations.
• Great for diversity setups.

Specifications

• Frequency Range: 5645 – 5945 Mhz
• Gain: 9.4 dBi
• Beam Width: 61° at -3db points

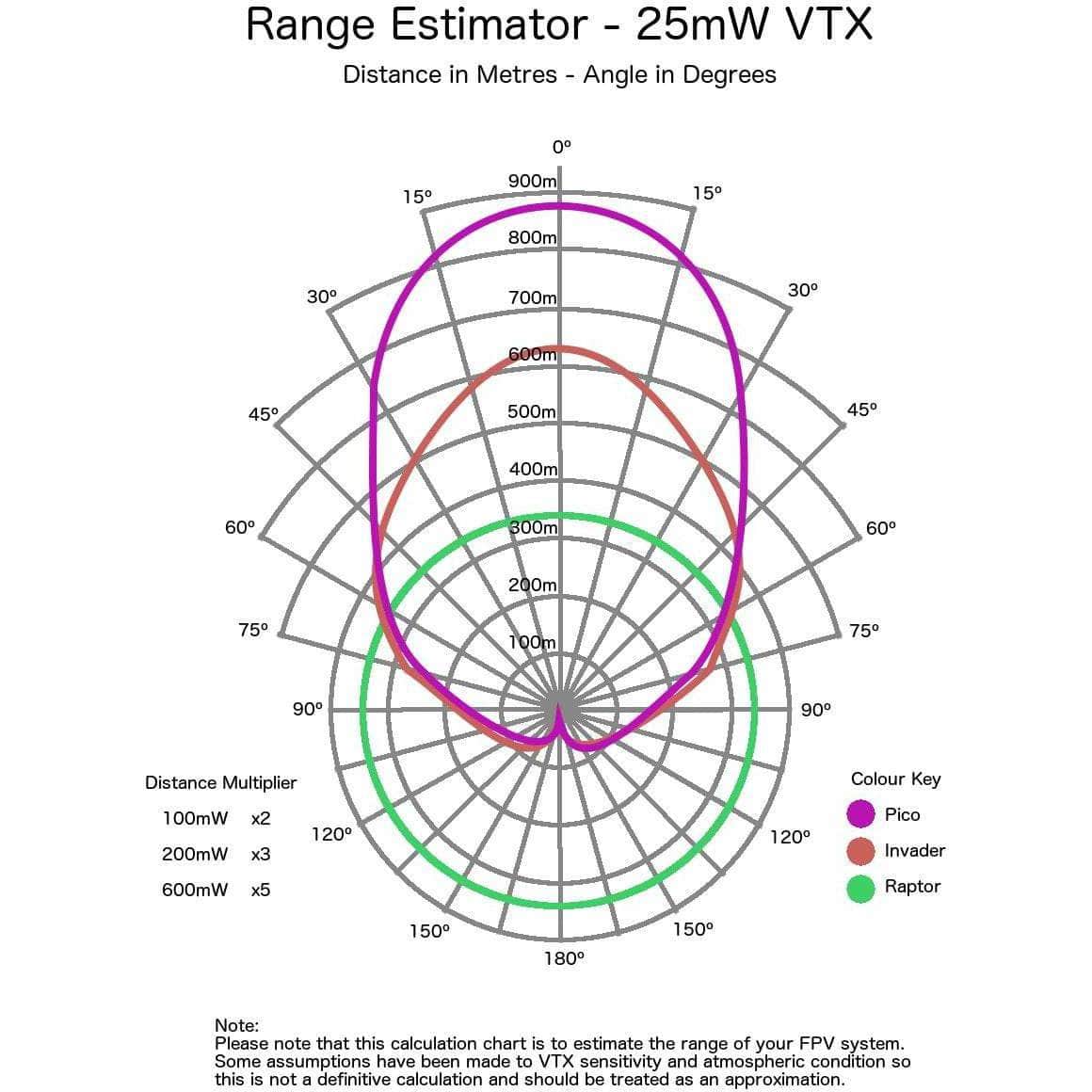

• (Check polar plot comparison invader actual angular db)
• Right Hand Circular Polarized
• SMA Connector (Fits Fatshark Goggles)
• Dimensions: 37.0mm x 33.6mm x 19.2mm
• Weight: 10 grams

 Includes

• 1x MenaceRC Pico Patch 5.8GHz SMA Receiver Antenna - RHCP
