TrueRC X2-Air MKII & Stubbies 5.8GHz Receiver Antenna Set for DJI - LHCP

More gain and more convenience! This is the adaptation of the all mighty X²-AIR into a slick low profile face mount for the DJI goggles . Simply peel the included adhesive, stick them on and throw your goggles in your bag ready for a day of flying. Improved 13dBic gain and massive combined beam width of 180deg, yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included singularity stubbies and performance has never been so convenient!

Check out all our FPV Receivers & Antennas, and all our TrueRC gear!

Features

• Sector type beam shape (widest on horizontal)

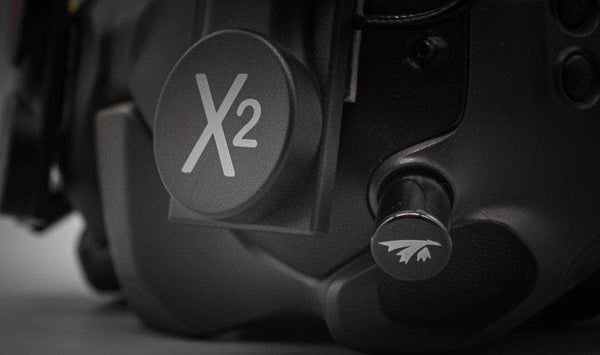

• Mount direct on DJI faceplate with included adhesive backing

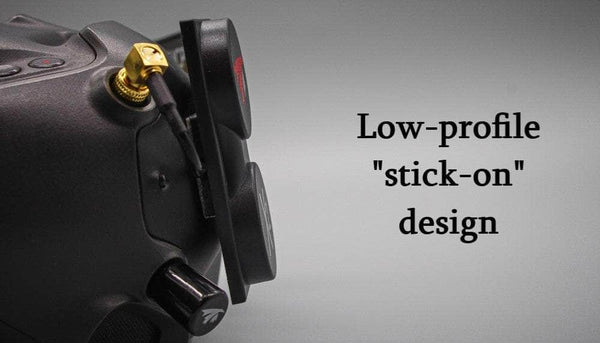

• Compact low-profile design on your goggles, easy to store and transport

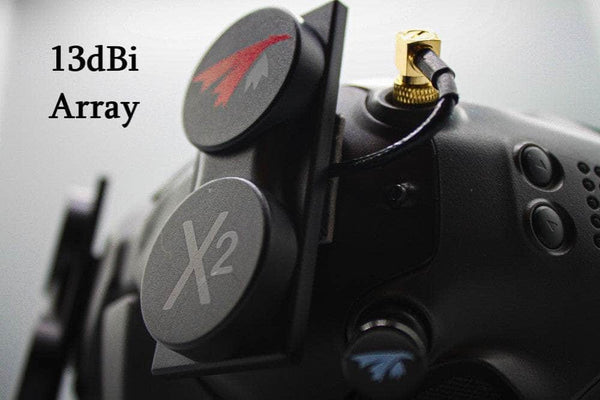

• High 13 dBic for unsurpassed long range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 150 degree beam for each antenna combining to 180deg beam width

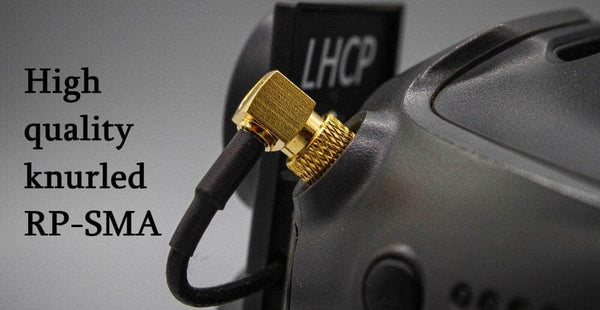

• Custom knurled RP-SMA connectors
• Highly compact included stubby antennas for combined directional and omnidirectional coverage

Specifications

• Bandwidth: 5.1GHz-7.0GHz
• Polarization: LHCP
• Gain: 13 dBic
• Beam-Width: 150deg
• Beam-width @-3dB:  75deg
• Antenna Dimensions: 72mm x 34mm x 15mm
• Connection: Custom knurled RP-SMA
• Weight: 20g

Stubby

• Bandwidth: 5.6GHz-6.0GHz
• Polarization: LHCP
• Gain: 1.9 dBic
• Radiation Efficiency: 99%
• Antenna Dimensions: 12.7mm x 20mm
• Connection: RP-SMA
• Weight: 3.7g

Includes

• 2x TrueRC X2-Air MKII  5.8GHz Receiver Antenna
• 2x TrueRC  Stubby 5.8GHz Receiver Antenna
