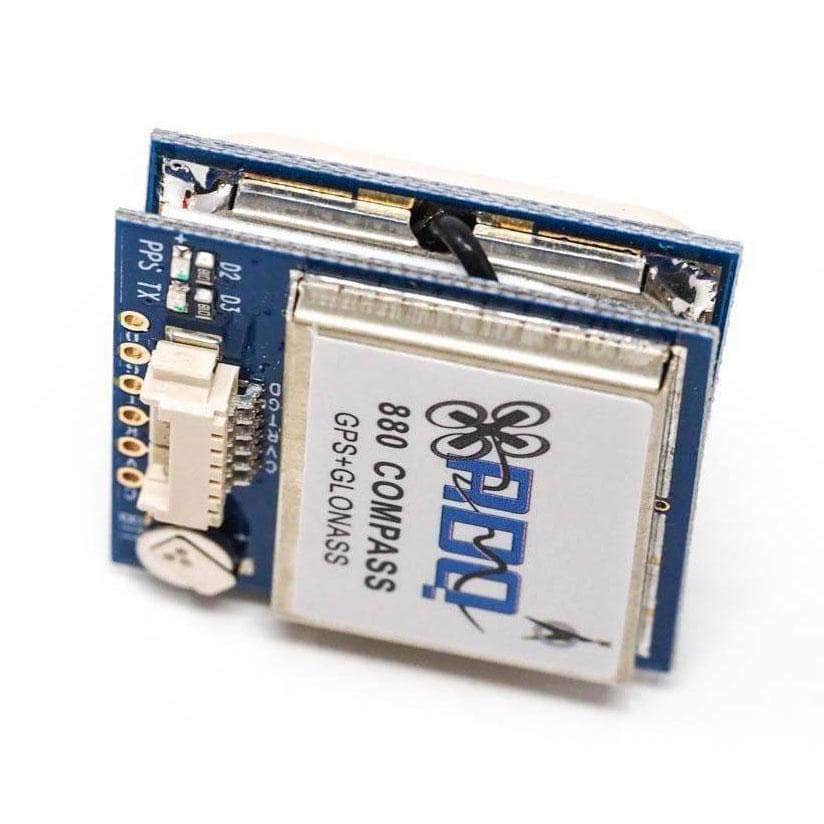

RDQ BN-880 Flight Control GPS Module w/ Compass

23.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          A reliable GPS with built in compass, all at a great price!

          Check out all our GPS modules!

          Features

          • GPS Module, Dual Module Compass
          • With electronic compass IC HMC5883L
          • 1.25mm spacing between the 6pins patch seat

          Specifications

          • Power Supply:
          • DC Voltage 2.8V~6.0V
          • Typical:3.3V or 5.0V
          • Consumption: Capture 50mA@5V
          • Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
          • Receiving Channel: 72 Searching Channel
          • Receiving Sensitivity:
            • Trace -167dBm
            • Capture-148dBm
          • Positioning Time:
            • Cold Start: 26s Average
            • Warm Start: 25s Average
            • Hot Start: 3s Average
          • Level Positioning Precision: 2m At Open Wind
          • Output Frequency: 1Hz-10Hz,Default 1Hz
          • Speed Precision: 0.1 m/s (Without Aid)
          • Acceleration Precision: 0.1 m/s (Without Aid)
          • Dynamic Characteristics:
            • Max Height: 18000m
            • Max Speed: 5153m/s
            • Max Acceleration: 4G
          • UART Interface:
            • UART Port: TXDA and RXDA
            • Support Rate: 4800bps to 115200bps,Default 38400dps
          • Working Temperature:-40℃-+85℃
          • Storage Temperature:-40℃-+85℃

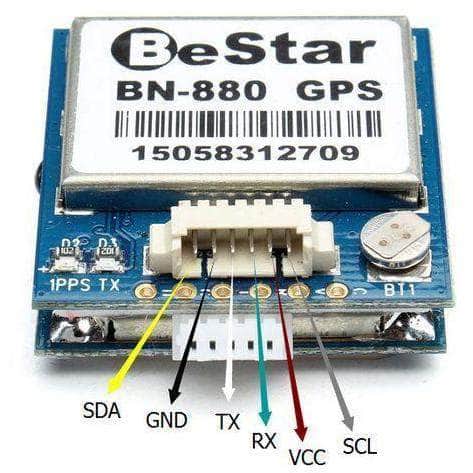

          • The Module’s Pins: SDA,GND,TX,RX,VCC,SCL
          • Size: 28x28x10mm
          • Weight: 10g

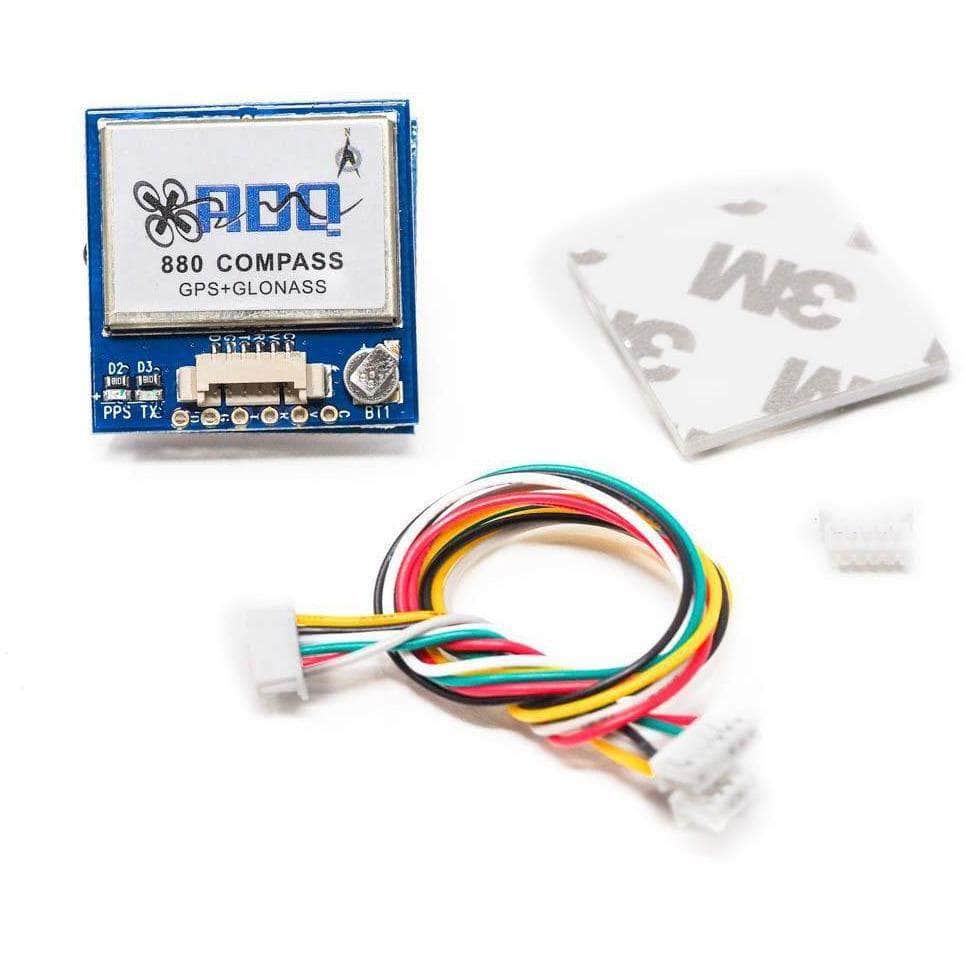

          Includes

          • 1x BN-880 GPS Module
          • 1x 15cm Cable
          • 1x 3M double-sided tape square

          Setup

          Note: Can not use for flight control with SCM, but it is suitable for Open source flight controller.

          GPS Program Set up documents and instructions: Please click here
          BN-880 GPS Configuration files

          Check out this great demonstration of the Rescue feature from our customer, Bill Adams:
